PS2501AL-1 Description

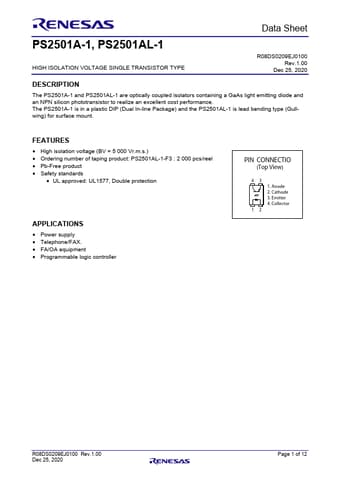

Data Sheet PS2501A-1, PS2501AL-1 HIGH ISOLATION VOLTAGE SINGLE TRANSISTOR TYPE R08DS0209EJ0100 Rev.1.00 Dec 25, 2020 .
The PS2501A-1 and PS2501AL-1 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon phototransistor to realize an e.
PS2501AL-1 Features
* High isolation voltage (BV = 5 000 Vr. m. s. )
* Ordering number of taping product: PS2501AL-1-F3 : 2 000 pcs/reel
* Pb-Free product
* Safety standards
PS2501AL-1 Applications
* Power supply
* Telephone/FAX.
* FA/OA equipment
* Programmable logic controller
PIN CONNECTION
(Top View)
43 1. Anode 2. Cathode 3. Emitter 4. Collector
12
R08DS0209EJ0100 Rev.1.00 Dec 25, 2020
Page 1 of 12
PS2501A-1, PS2501AL-1
PACKAGE DIMENSIONS (UNIT: mm)
DIP Type PS2501A-1
