PS2502-4, PS2502-1, HIGH ISOLATION VOLTAGE DARLINGTON TRANSISTOR

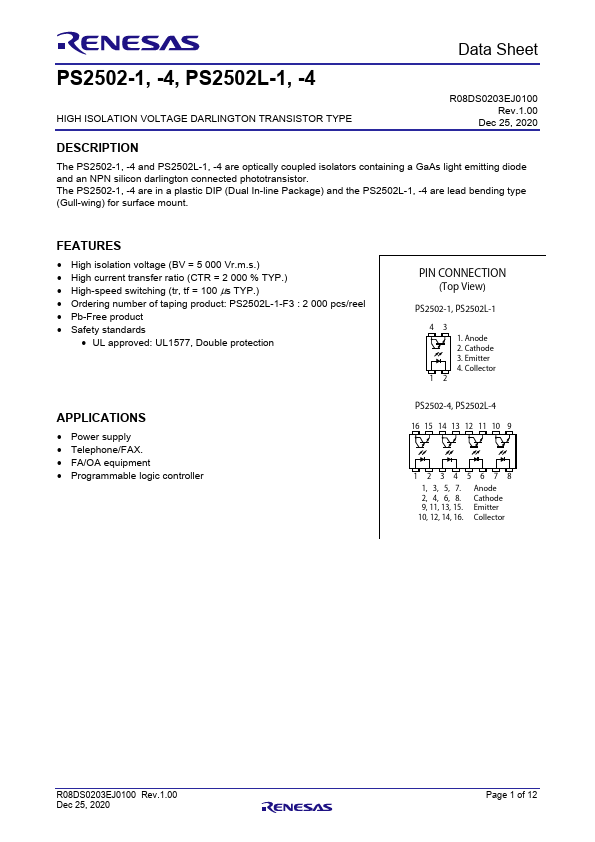

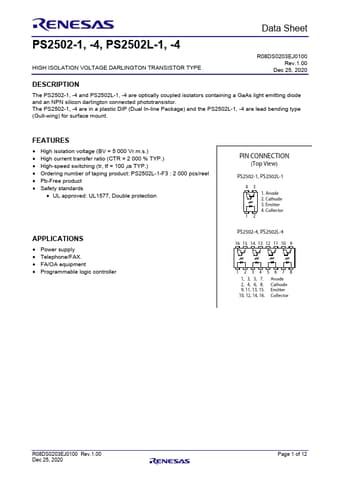

Data Sheet PS2502-1, -4, PS2502L-1, -4 HIGH ISOLATION VOLTAGE DARLINGTON TRANSISTOR TYPE R08DS0203EJ0100 Rev.1.00 Dec 25, 2020 .
The PS2502-1, -4 and PS2502L-1, -4 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon darlington connected phot.

datasheet Preview Page 1 from Datasheet4u.com

PS2502-1-Renesas.pdf

PS2502-4 Datasheet Preview — This datasheet PDF includes multiple part numbers: PS2502-4, PS2502-1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PS2502-4, PS2502-1

Manufacturer:

Renesas ↗

File Size:

5.08 MB

Description:

HIGH ISOLATION VOLTAGE DARLINGTON TRANSISTOR

Note:

This datasheet PDF includes multiple part numbers: PS2502-4, PS2502-1.
Please refer to the document for exact specifications by model.

Features

* High isolation voltage (BV = 5 000 Vr. m. s. )
* High current transfer ratio (CTR = 2 000 % TYP. )
* High-speed switching (tr, tf = 100 s TYP. )

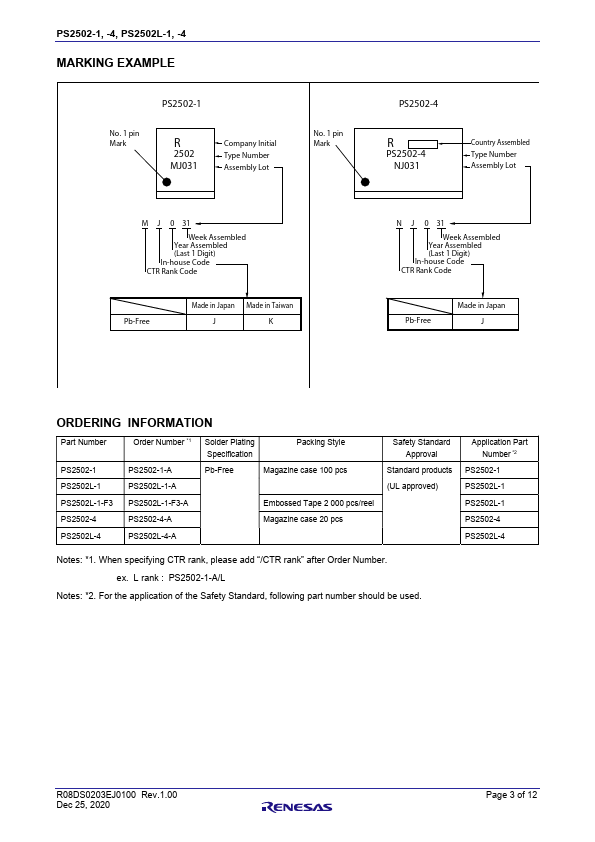

* Ordering number of taping product: PS2502L-1-F3 : 2 000 pcs/reel
* Pb-Free product
* Safety standards
* UL approved: UL1577, Do

Applications

* Power supply
* Telephone/FAX.
* FA/OA equipment
* Programmable logic controller PIN CONNECTION (Top View) PS2502-1, PS2502L-1 43 1. Anode 2. Cathode 3. Emitter 4. Collector 12 PS2502-4, PS2502L-4 16 15 14 13 12 11 10 9 12345678 1, 3, 5, 7. 2, 4, 6, 8. 9, 11, 13, 15. 10, 12, 14,
