PS2501L-1 - NPN silicon phototransistor

Product Overview

Renesas

📥 Download Datasheet

PS2501L-1 NPN silicon phototransistor by Renesas - Datasheet Preview — Datasheet preview – PS2501L-1

Datasheet Details

Part number	PS2501L-1
Manufacturer	Renesas
File Size	5.07 MB
Description	NPN silicon phototransistor
Datasheet	PS2501L-1 Datasheet
Note	This datasheet PDF includes multiple part numbers: PS2501L-1, PS2501-1. Please refer to the document for exact specifications by model.

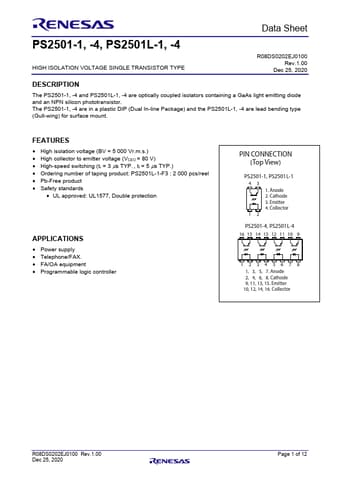

Additional preview pages of the PS2501L-1 datasheet.

Product details

Description

The PS2501-1, -4 and PS2501L-1, -4 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon phototransistor.

Features

High isolation voltage (BV = 5 000 Vr. m. s. ).
High collector to emitter voltage (VCEO = 80 V).
High-speed switching (tr = 3 s TYP. , tf = 5 s TYP. ).
Ordering number of taping product: PS2501L-1-F3 : 2 000 pcs/reel.
Pb-Free product.
Safety standards.
UL approved: UL1577, Double protection.
