PC792A Datasheet, Relay, Picker Components

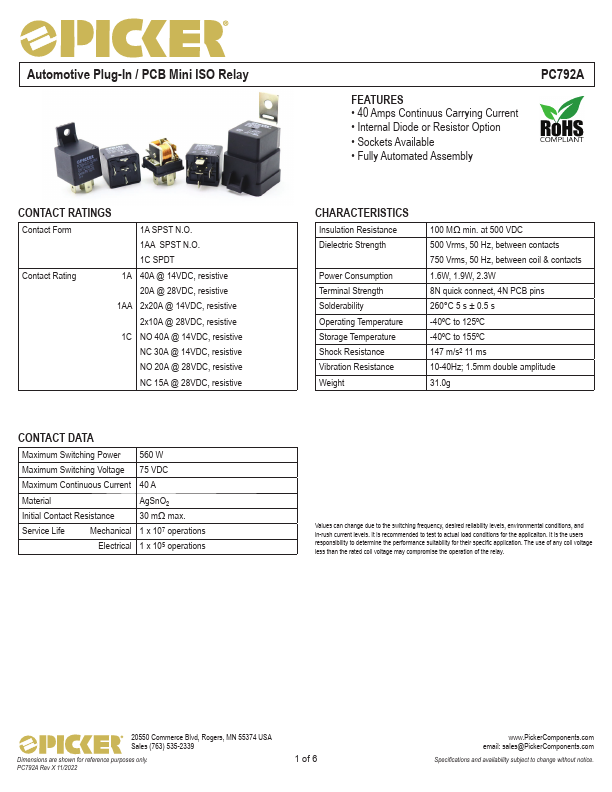

PC792A Features

• Relay
•  Most Popular Automotive Relay Footprint
•  Contact Switching Capacity up to 120 Amps
•  40 Amps Continuous Carrying Current
•  1250C Operating Temper

PDF File Details

Part number:

PC792A

Manufacturer:

Picker Components

File Size:

253.29kb

Download:

📄 Datasheet

Description:

Automotive plug-in / pcb power relay.
