PC792H Datasheet, Relay, Picker

PC792H Features

  • Relay
  • Most Popular Automotive Relay Footprint
  • 1A and 1C Contact Forms Available
  • Contact Switching Capacity up to 180 Amps
  • 60 Amps Continuous Carrying C

PDF File Details

Part number:

PC792H

Manufacturer:

Picker

File Size:

619.50kb

Download:

📄 Datasheet

Description:

Pcb relay.

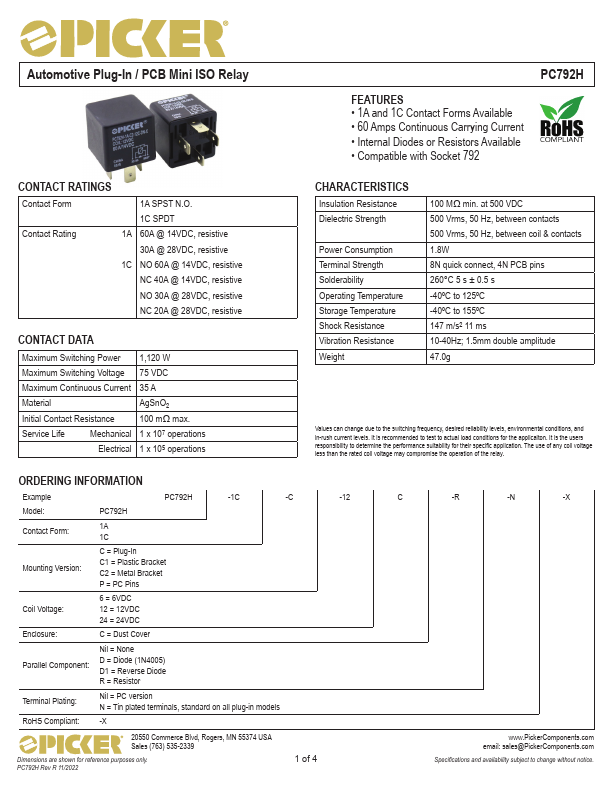

Datasheet Preview: PC792H 📥 Download PDF (619.50kb)

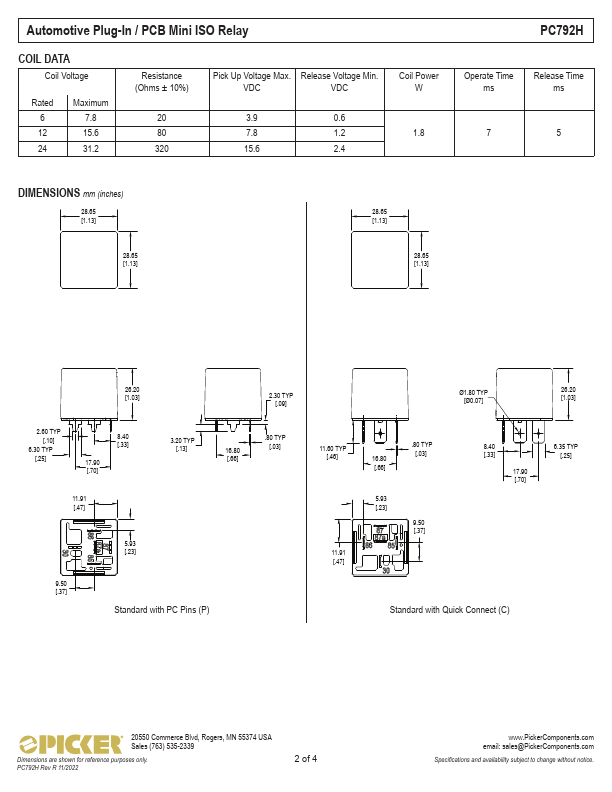

Page 2 of PC792H
