PC792E Datasheet - Picker

PC792E Automotive Plug-In / PCB Mini ISO Relay

Automotive Plug-In / PCB Mini ISO Relay CONTACT RATINGS Contact Form 1A SPST N.O. 1C SPDT Contact Rating 1A 50A @ 14VDC, resistive 20A @ 28VDC, resistive 1C NO 50A @ 14VDC, resistive NC 40A @ 14VDC, resistive NO 20A @ 28VDC, resistive NC 15A @ 28VDC, resistive CONTACT DATA Maximum Switching Power 700 W Maximum Switching Voltage 75 VDC Maximum Continuous Current 50 A Material Initial Contact Resistance AgSnO2 50 mĪ© max. Service Life Mechanical 1 x 107 operations Electrical 1 x .

PC792E Features

* 50 Amps Continuus Carrying Current

* Internal Diode or Resistor Option

* Sockets Available PC792E CHARACTERISTICS Insulation Resistance Dielectric Strength Power Consumption Terminal Strength Solderability Operating Temperature Storage Temperature Shock Resistance Vibrati

PC792E Datasheet (195.47 KB)

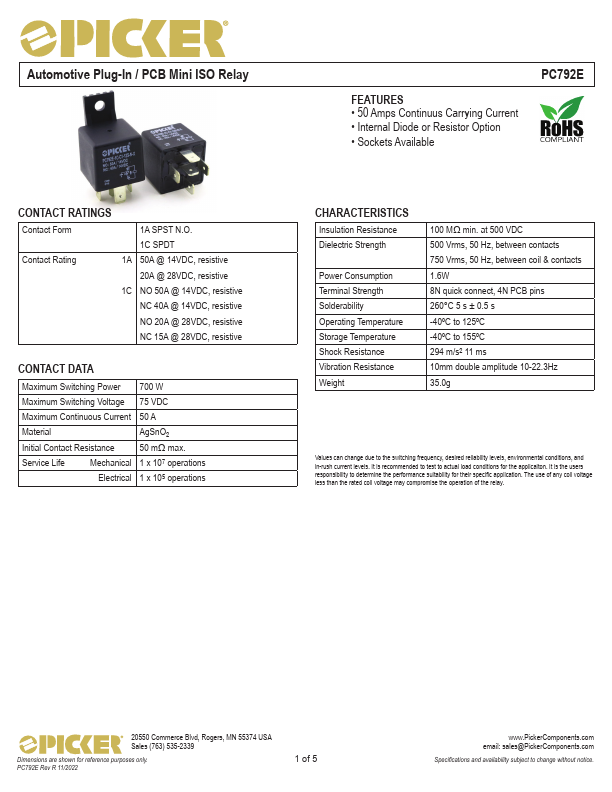

Preview of PC792E PDF

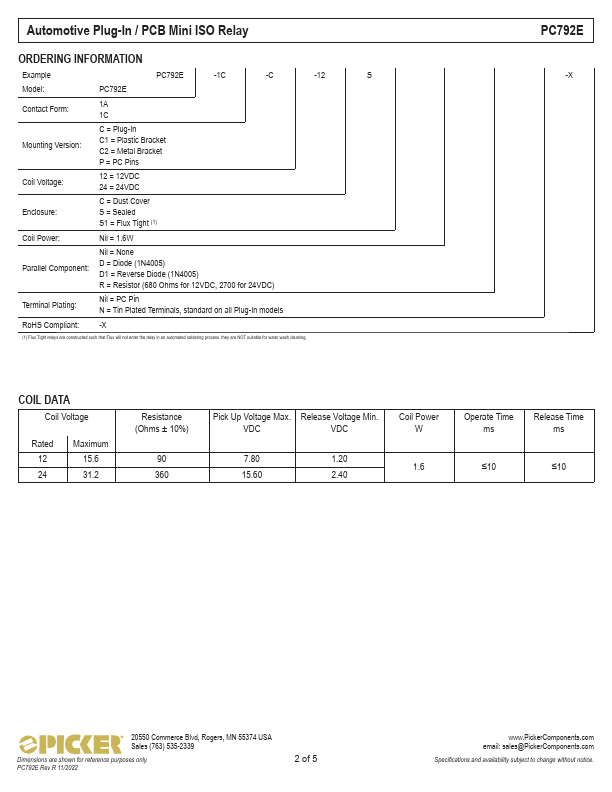

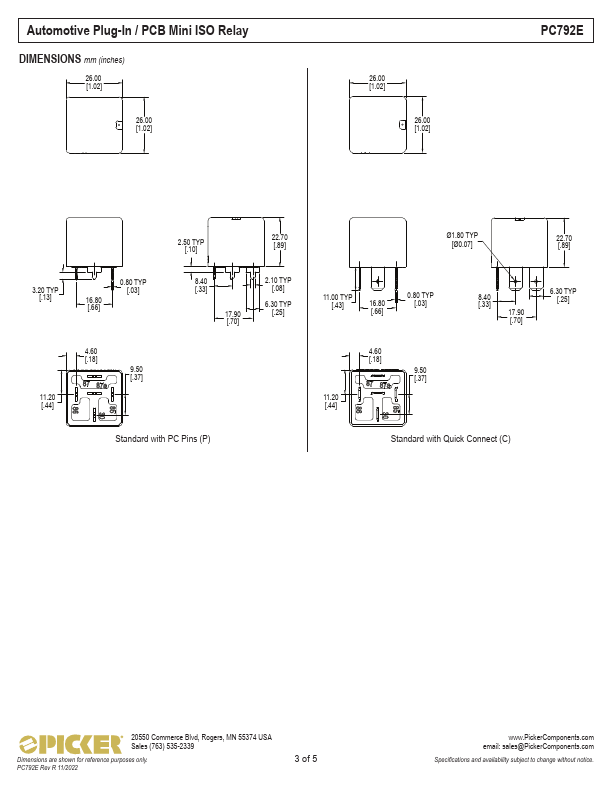

PC792E Datasheet Preview Page 2 PC792E Datasheet Preview Page 3

Datasheet Details

Part number:

PC792E

Manufacturer:

Picker

File Size:

195.47 KB

Description:

Automotive plug-in / pcb mini iso relay.
