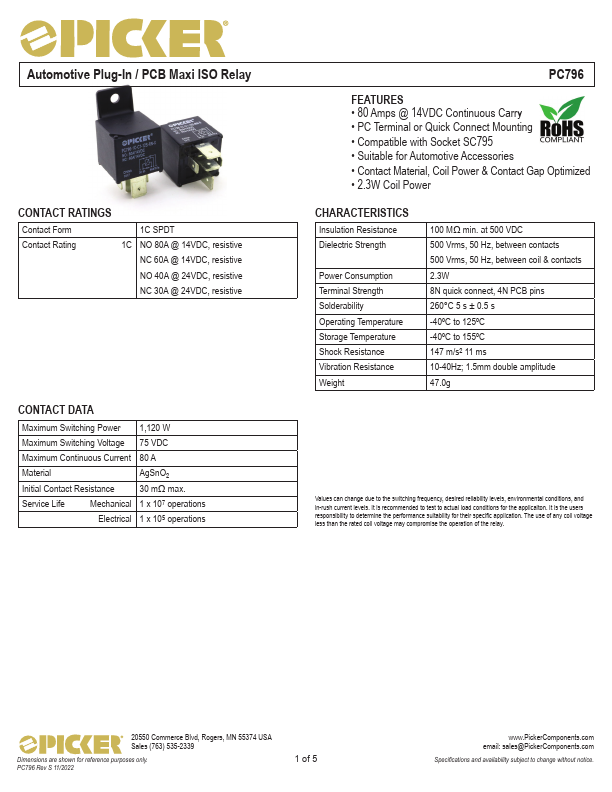

PC796 Datasheet, Relay, Picker

PC796 Features

  • Relay
  • Designed for H Bridge Motor Drive Applications Utilizing the NC Contact for Dynamic Braking
  • Contact Material, Coil Power and Contact Gaps Optimized
  • NC C

PDF File Details

Part number:

PC796

Manufacturer:

Picker

File Size:

620.99kb

Download:

📄 Datasheet

Description:

Relay.

Datasheet Preview: PC796 📥 Download PDF (620.99kb)
Page 2 of PC796

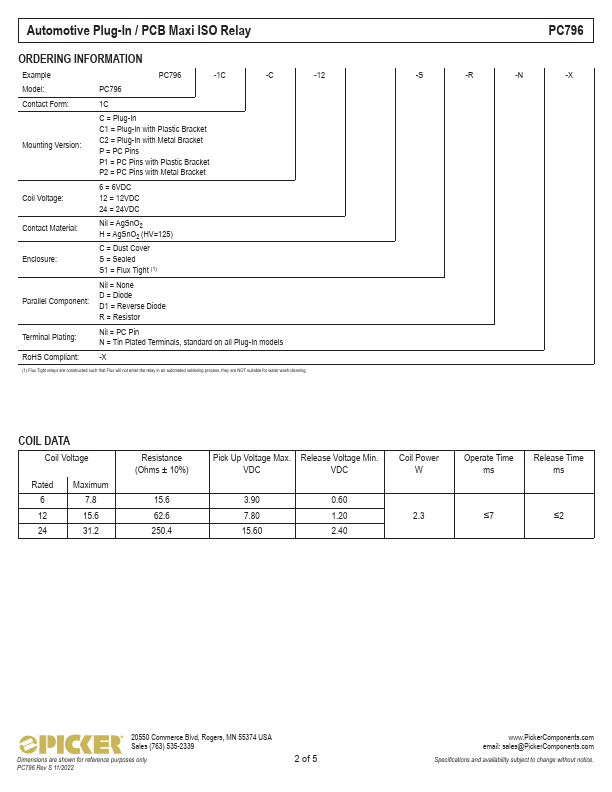

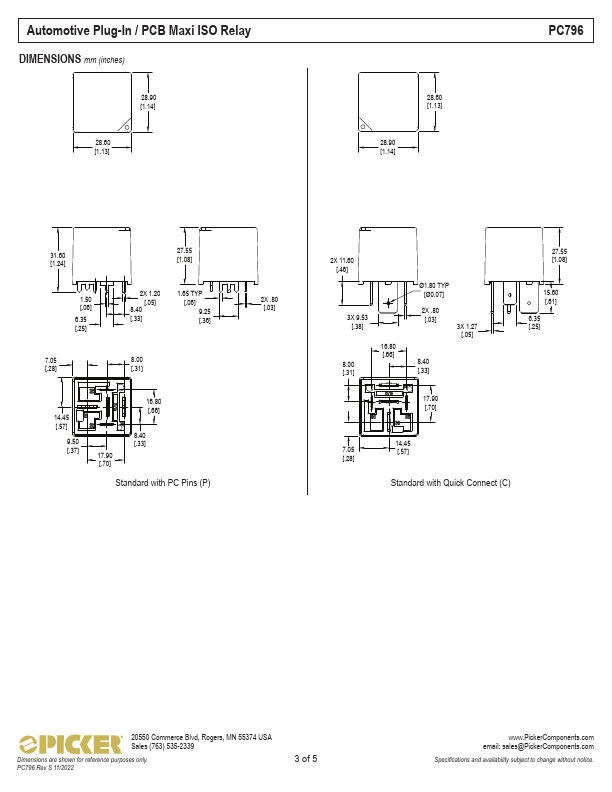

PC796 Application

  • Applications Utilizing the NC Contact for Dynamic Braking
  • Contact Material, Coil Power and Contact Gaps Optimized
  • NC Contact B
