PCS34, PCS34-1 - AC Input Solid State Relay

Picker

📥 Download Datasheet

PCS34 Datasheet Preview — This datasheet PDF includes multiple part numbers: PCS34, PCS34-1. Please refer to the document for exact specifications by model.

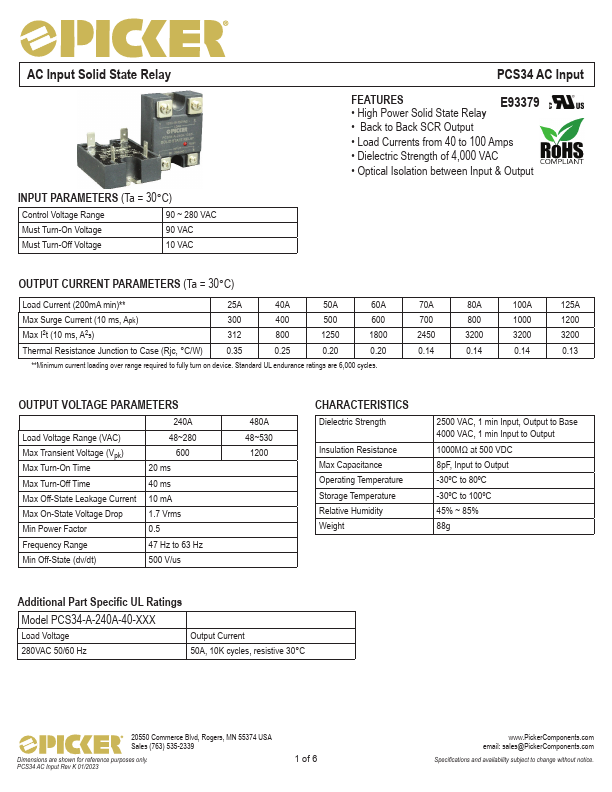

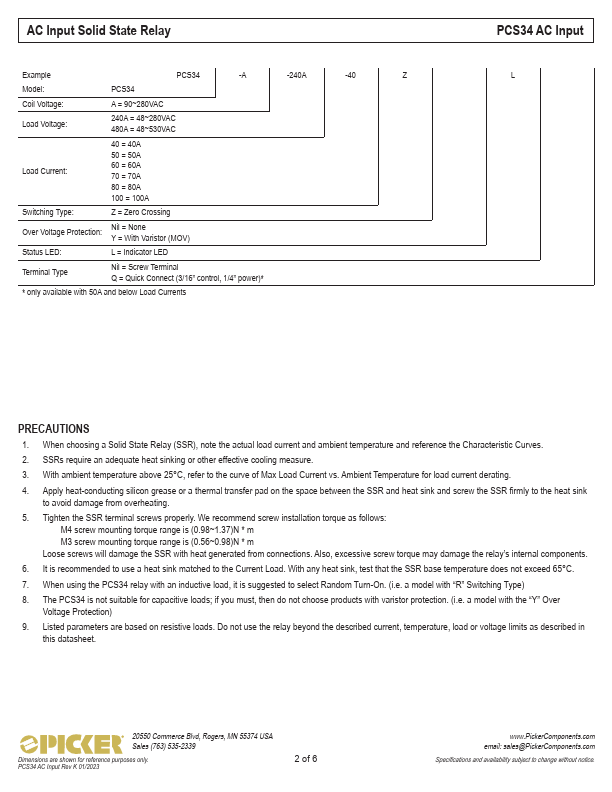

datasheet Preview Page 2

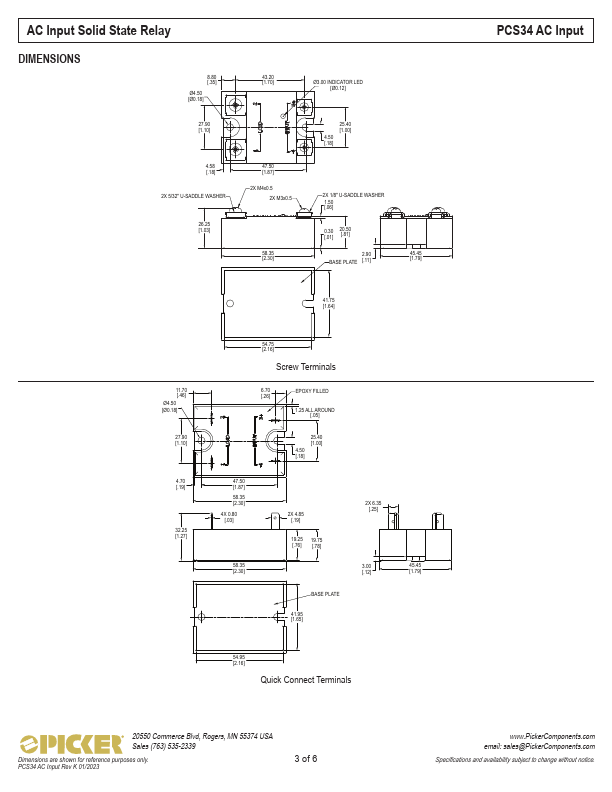

datasheet Preview Page 3

Datasheet Details

Part number	PCS34, PCS34-1
Manufacturer	Picker
File Size	320.61 KB
Description	AC Input Solid State Relay
Datasheet	PCS34-1-Picker.pdf
Note	This datasheet PDF includes multiple part numbers: PCS34, PCS34-1. Please refer to the document for exact specifications by model.

PCS34 Product details

Features

E93379.
High Power Solid State Relay.
Back to Back SCR Output.
Load Currents from 40 to 100 Amps.
Dielectric Strength of 4,000 VAC.
Optical Isolation between Input & Output OUTPUT.
