PAS106BBB-283 SINGLE-CHIP CMOS CIF B&W DIGITAL IMAGE SENSOR

The PAS106BCB-283/PAS106BBB-283 is a highly integrated CMOS active-pixel image sensor that has a CIF resolution of 356H x 292V. To have an excellent image quality, the PAS106BCB-283/PAS106BBB-283 outputs 10-bit RGB raw data through a parallel data bus. It is available in color or monochrome in 28-pi.

PAS106BBB-283 Features

* CIF(356 x 292 pixels) resolution, ~1/5” Lens

* Bayer-RGB color filter array

* On-chip 10-bit pipelined A/D converter

* Output formats: 10-bit parallel RGB raw data

* On-chip 6-bit (1 sign bit+ 5 magnitude bit) background compensation DAC

* On-chip programmable gain amplifie

PAS106BCB-283-PixArt.pdf

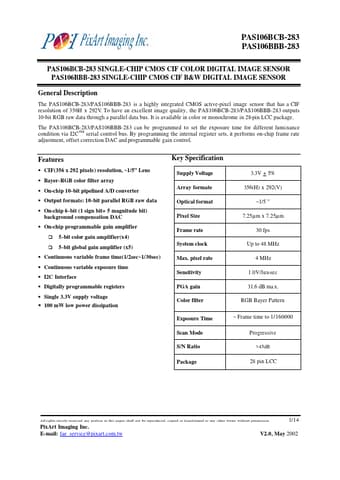

PAS106BBB-283 Datasheet Preview — This datasheet PDF includes multiple part numbers: PAS106BBB-283, PAS106BCB-283. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PAS106BBB-283, PAS106BCB-283

Manufacturer:

PixArt

File Size:

103.87 KB

Description:

Single-chip cmos cif b&w digital image sensor.

Note:

This datasheet PDF includes multiple part numbers: PAS106BBB-283, PAS106BCB-283.
Please refer to the document for exact specifications by model.
