PAS109BB QQVGA MONO CMOS IMAGE SENSOR

The PAS109B is a color and monochrome digital CMOS image sensor with resolution of 164(H) x 124(V). The PAS109B outputs 8, 4 , 2 or 1-bit digital raw data or 8-bit formatted data per pixel. The PAS109B performs automatic gain control, automatic exposure control and automatic de-flicker. The PAS109B .

PAS109BB Features

* 164x124 pixels, 1/11” Lens Automatic/Manual exposure-gain control On chip 10-bit ADC On chip PGA On chip 9-bit DAC User selectable output data formats:

* 8-bit formatted data

* 8/4/2/1-bit raw data Output tri-state through /CSB pin or register AE report Hor

PAS109B-PixArt.pdf

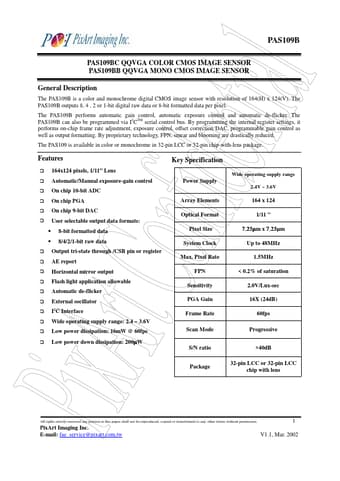

PAS109BB Datasheet Preview — This datasheet PDF includes multiple part numbers: PAS109BB, PAS109B. Please refer to the document for exact specifications by model.

PAS109BB Datasheet Preview Page 2

PAS109BB Datasheet Preview Page 3

Datasheet Details

Part number:

PAS109BB, PAS109B

Manufacturer:

PixArt

File Size:

537.90 KB

Description:

Qqvga mono cmos image sensor.

Note:

This datasheet PDF includes multiple part numbers: PAS109BB, PAS109B.
Please refer to the document for exact specifications by model.
