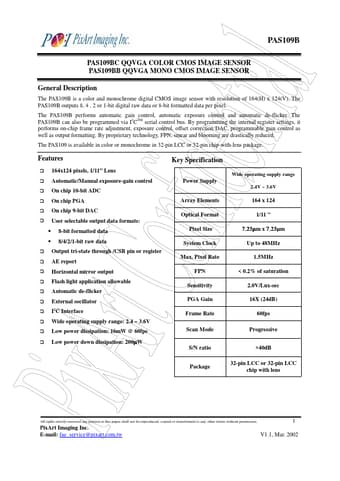

PAS109B Datasheet (PixArt) - QQVGA CMOS IMAGE SENSOR

PAS109B, QQVGA CMOS IMAGE SENSOR

The PAS109B is a color and monochrome digital CMOS image sensor with resolution of 164(H) x 124(V).

The PAS109B outputs 8, 4 , 2 or 1-bit digital raw data or 8-bit formatted data per pixel.

The PAS109B performs automatic gain control, automatic exposure control and automatic de-flicker.

The PAS109B

PAS109B Features

* 164x124 pixels, 1/11” Lens Automatic/Manual exposure-gain control On chip 10-bit ADC On chip PGA On chip 9-bit DAC User selectable output data formats:

* 8-bit formatted data

* 8/4/2/1-bit raw data Output tri-state through /CSB pin or register AE report Hor
