PAS106BCB-283, SINGLE-CHIP CMOS CIF COLOR DIGITAL IMAGE SENSOR

PAS106BCB-283 PAS106BBB-283 PAS106BCB-283 SINGLE-CHIP CMOS CIF COLOR DIGITAL IMAGE SENSOR PAS106BBB-283 SINGLE-CHIP CMOS CIF B&W DIGITAL IMAGE SENSOR.
The PAS106BCB-283/PAS106BBB-283 is a highly integrated CMOS active-pixel image sensor that has a CIF resolution of 356H x 292V.

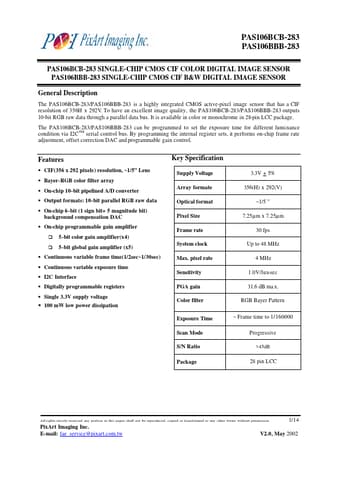

datasheet Preview Page 1 from Datasheet4u.com

PAS106BCB-283-PixArt.pdf

PAS106BCB-283 Datasheet Preview — Preview of PAS106BCB-283 PDF

Datasheet Details

Part number:

PAS106BCB-283

Manufacturer:

PixArt

File Size:

103.87 KB

Description:

SINGLE-CHIP CMOS CIF COLOR DIGITAL IMAGE SENSOR

Features

* CIF(356 x 292 pixels) resolution, ~1/5” Lens
* Bayer-RGB color filter array
* On-chip 10-bit pipelined A/D converter
* Output formats: 10-bit parallel RGB raw data
* On-chip 6-bit (1 sign bit+ 5 magnitude bit) background compensation DAC
* On-chip programmable gain amplifie
