PAW3212DB-TJDT Datasheet, sensor equivalent, PixArt

PAW3212DB-TJDT Features

  • Sensor z Single power with wide voltage range Low Voltage Segment : 1.7V to 2.1V (VDD, VDDA short) High Voltage Segment : 2.1V to 3.6V (VDDA should connect a capacitor to GND) z Selectable 3-w

PDF File Details

Part number:

PAW3212DB-TJDT

Manufacturer:

PixArt

File Size:

657.66kb

Download:

📄 Datasheet

Description:

Ultra low power wireless mouse sensor. The PixArt PAW3212DB-TJDT is optimized for red LED based wireless mouse applications. It has low power architecture, high precision s

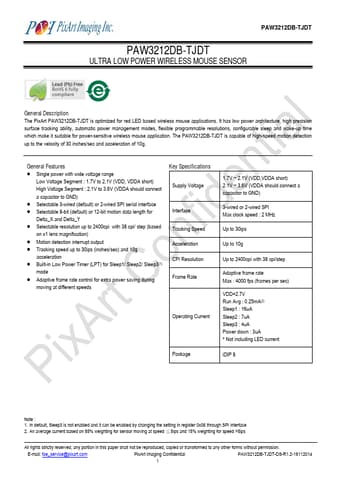

Datasheet Preview: PAW3212DB-TJDT 📥 Download PDF (657.66kb)
Page 2 of PAW3212DB-TJDT Page 3 of PAW3212DB-TJDT

PAW3212DB-TJDT Application

  • Applications It has low power architecture, high precision surface tracking ability, automatic power management modes, flexible programmable resolu
