PL10P06 - P-Ch 60V Fast Switching MOSFET

PL10P06 Description

P-Ch 60V Fast Switching MOSFETs * Super Low Gate Charge * 100% EAS Guaranteed * Green Device Available * Excellent CdV/dt effect decl.
The PL10P06 is the high cell density trenched P-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter a.

PL10P06 Applications

* The PL10P06 meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved. TO252 Pin Configuration Absolute Maximum Ratings Symbol VDS VGS ID@TC=25℃ ID@TC=100℃ ID@TA=25℃ ID@TA=70℃ IDM EAS IAS PD@TC=25℃ PD@TA=25℃ TSTG TJ Parameter Drain-Source Voltage G

📥 Download Datasheet

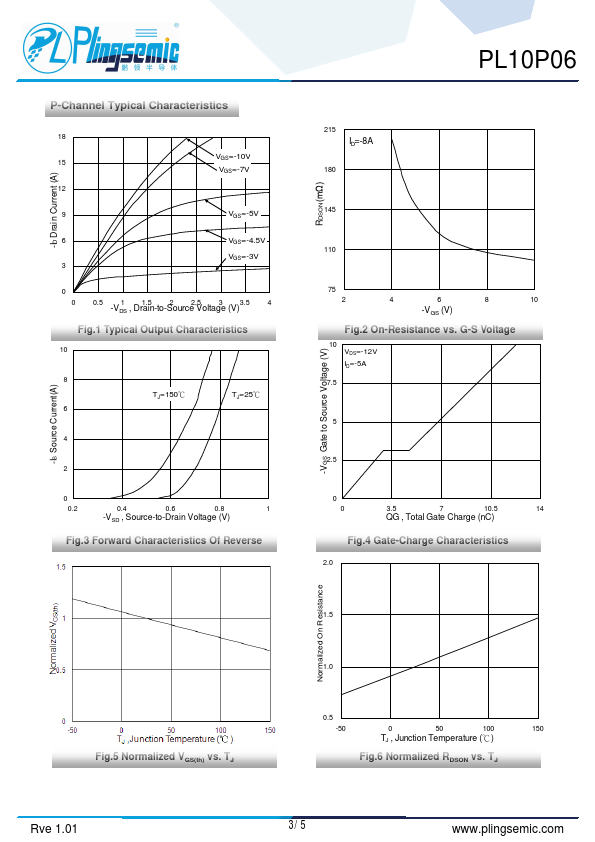

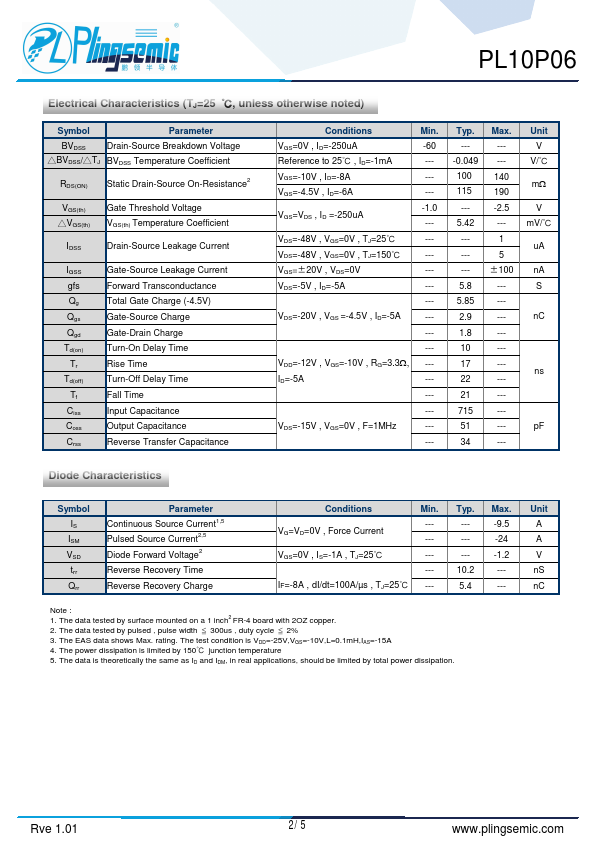

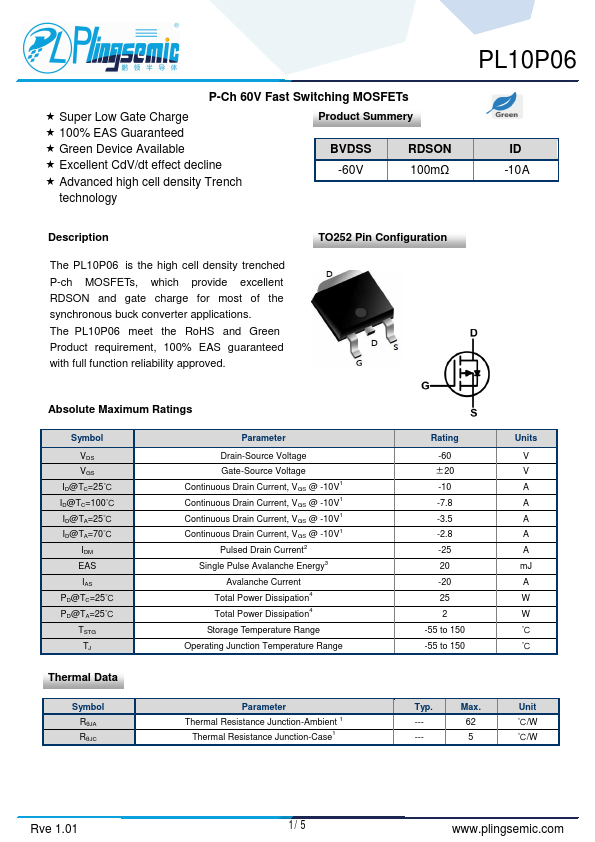

PL10P06 Datasheet Preview — Preview of PL10P06 PDF

Datasheet Details

Part number: PL10P06
Manufacturer: Plingsemic
File Size: 651.44 KB
Datasheet: PL10P06-Plingsemic.pdf
Description: P-Ch 60V Fast Switching MOSFET
