Description

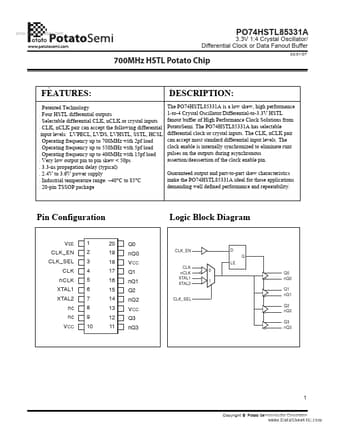

www.DataSheet4U.com 3.3V 1:4 Crystal Oscillator/ Differential Clock or Data Fanout Buffer PO74HSTL85331A 03/01/07 700MHz HSTL Potato Chip .
Features
* . Patented Technology . Four HSTL differential outputs . Selectable differential CLK, nCLK or crystal inputs . CLK, nCLK pair can accept the following differential input levels: LVPECL, LVDS, LVHSTL, SSTL, HCSL . Operating frequency up to 700MHz with 2pf load . Operating frequency up to 550MHz withApplications
* demanding well defined performance and repeatability. Pin Configuration VEE CLK_EN CLK_SEL CLK nCLK XTAL1 XTAL2 nc nc V CC 1 2 3 4 5 6 7 8 9 10 20 19 18 17 16 15 14 13 12 11 Q0 nQ0 V CC Q1 nQ1 Q2 nQ2 V CC Q3 nQ3 Logic Block Diagram CLK_EN D Q LE CLK nCLK XTAL1 XTAL2 CLK_SEL 0 1 Q0 nQ0 Q1 nQ1PO74HSTL85331A Distributors
