PO74HSTL85350A

LVCMOS Input to HSTL Output 1:4 Fanout Buffer

PO74HSTL85350A Features

* . Patented Technology . Four HSTL differential outputs . Two single LVTTL/LVCMOS inputs . Operating frequency up to 300MHz with 15 pf load . Very low output pin to pin skew < 50ps . 3.4-ns propagation delay (max) . 2.4V to 3.6V power supply . Industrial temperature range:

* 40°C to 85°C . 20

PO74HSTL85350A General Description

The PO74HSTL85350A is a low-skew, 1-to-4 differential fanout buffer targeted to meet the requirements of high-performance clock and data distribution applications. The device is implemented on CMOS technology and has a fully differential internal architecture that is optimized to achieve low signal.

PO74HSTL85350A Datasheet (589.76 KB)

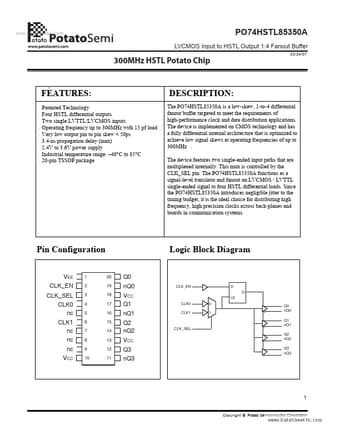

PO74HSTL85350A Datasheet Preview — Preview of PO74HSTL85350A PDF

Datasheet Details

Part number:

PO74HSTL85350A

Manufacturer:

Potato Semiconductor Corporation

File Size:

589.76 KB

Description:

Lvcmos input to hstl output 1:4 fanout buffer.
