PO74G14A

HEX SCHMITT-TRIGGER INVERTERS

PO74G14A Features

* . Patented technology . Operating frequency up to 1.125GHz with 2pf load . Operating frequency up to 680MHz with 5pf load www.DataSheet4U.com . Operating frequency up to 300MHz with 15pf load . Operating frequency up to 100MHz with 50pf load . VCC Operates from 1.65V to 3.6V . Propagation delay < 1

PO74G14A General Description

Potato Semiconductor’s PO74G14A is designed for world top performance using submicron CMOS technology to achieve 1.125GHz TTL /CMOS output frequency with less than 1.8ns propagation delay. This hex inverter contains six independent inverters designed for 1.65-V to 3.6-V VCC operation. The PO74G14A .

PO74G14A Datasheet (505.23 KB)

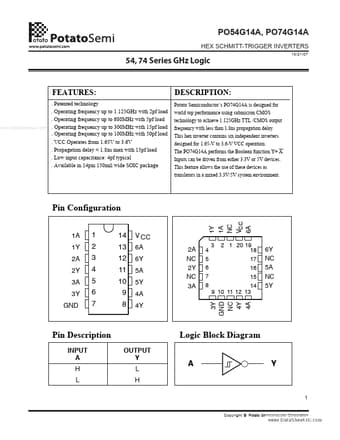

Preview of PO74G14A PDF

Datasheet Details

Part number:

PO74G14A

Manufacturer:

Potatosemi

File Size:

505.23 KB

Description:

Hex schmitt-trigger inverters.
