PO74G126A - QUADRUPLE BUS BUFFER GATE

The PO74G126A by Potatosemi is a QUADRUPLE BUS BUFFER GATE. Below is the official datasheet preview.

Datasheet Details

Part number	PO74G126A
Manufacturer	Potatosemi
File Size	493.13 KB
Description	QUADRUPLE BUS BUFFER GATE
Datasheet	PO74G126A_Potatosemi.pdf

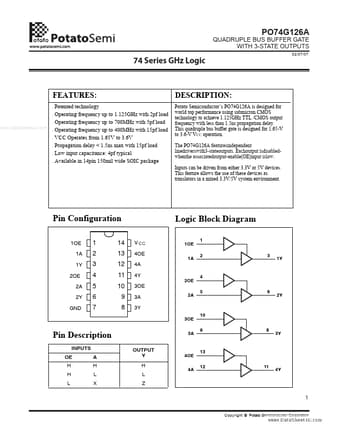

Additional preview pages of the PO74G126A datasheet.

PO74G126A Product details

Description

Potato Semiconductor’s PO74G126A is designed for world top performance using submicron CMOS technology to achieve 1.125GHz TTL /CMOS output frequency with less than 1.5ns propagation delay.

Features

. Patented technology . Operating frequency up to 1.125GHz with 2pf load . Operating frequency up to 700MHz with 5pf load www. DataSheet4U. com . Operating frequency up to 400MHz with 15pf load . VCC Operates from 1.65V to 3.6V . Propagation delay < 1.5ns max with 15pf load . Low input capacitance: 4pf typical . Available in 14pin 150mil wide SOIC package.
