PAM8610

10W Stereo Class-D Audio Power Amplifier

PAM8610 Features

* www.datasheet4u.com Load at General Description The PAM8610 is a 10W (per channel) stereo class-D audio amplifier with DC Volume Control which offers low THD+N (0.1%), low EMI, and good PSRR thus high-quality sound reproduction. The 32 steps DC volume control has a +32dB to -75dB range. The PAM8610

PAM8610 General Description

The PAM8610 is a 10W (per channel) stereo class-D audio amplifier with DC Volume Control which offers low THD+N (0.1%), low EMI, and good PSRR thus high-quality sound reproduction. The 32 steps DC volume control has a +32dB to -75dB range. The PAM8610 runs off of a 7V to 15V supply at much higher ef.

PAM8610 Datasheet (366.07 KB)

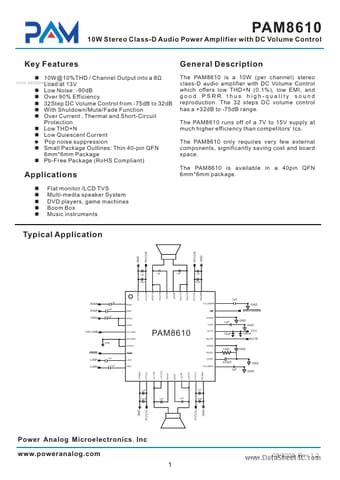

Preview of PAM8610 PDF

Datasheet Details

Part number:

PAM8610

Manufacturer:

Power Analog Micoelectronics

File Size:

366.07 KB

Description:

10w stereo class-d audio power amplifier.
