PAM8603A Datasheet - Diodes

PAM8603A ANTI-SATURATION FILTERLESS 3W CLASS-D STEREO AMPLIFIER

The PAM8603A is a 3W, Class-D audio amplifier with headphone amplifier. Advanced 64-Step DC volume control minimizes external components and allows speaker volume control and headphone volume control. PAM unique antisaturation technology which detects output signal clip due to the over level input s.

PAM8603A Features

* 3W Output at 10% THD with a 4Ω Load and 5V Power Supply

* Filterless, Low Quiescent Current and Low EMI

* Low THD+N

* 64-Step DC Volume Control

* Headphone Output Function

* Unique Anti-Saturation Function

* Superior Low Noise

* Low P

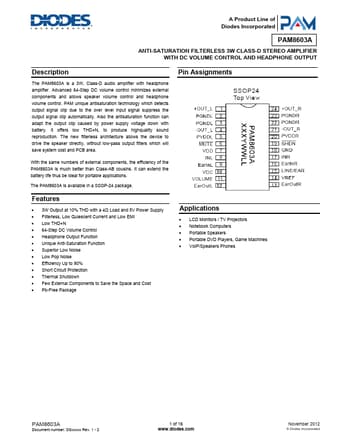

PAM8603A Datasheet (536.01 KB)

Preview of PAM8603A PDF

Datasheet Details

Part number:

PAM8603A

Manufacturer:

DIODES ↗

File Size:

536.01 KB

Description:

Anti-saturation filterless 3w class-d stereo amplifier.
