PAM8610 - 10W STEREO CLASS-D AUDIO POWER AMPLIFIER

PAM8610 Description

NOT RECOMMENDED FOR NEW DESIGN USE PAM8006A PAM8610 10W STEREO CLASS-D AUDIO POWER AMPLIFIER WITH DC VOLUME CONTROL .
The PAM8610 is a 10W (per channel) stereo Class-D audio amplifier with DC Volume Control which offers low THD+N (0.

PAM8610 Features

* 10W @ 10%THD/Channel Output into a 8Ω Load at 13V
* Low Noise: -90dB
* Over 90% Efficiency
* 32 Step DC Volume Control from -75dB to +32dB
* With Shutdown/Mute/Fade Function
* Over Current , Thermal and Short-Circuit Protection
* Low THD+N

PAM8610 Applications

* Flat Monitor /LCD TVS
* Multi-Media Speaker System
* DVD Players, Game Machines
* Boom Box
* Music Instruments Typical Applications Circuit PAM8610 Document number: DS36447 Rev. 2 - 3 1 of 15 www. diodes. com September 2020 © Diodes Incorporated Pin Descr

📥 Download Datasheet

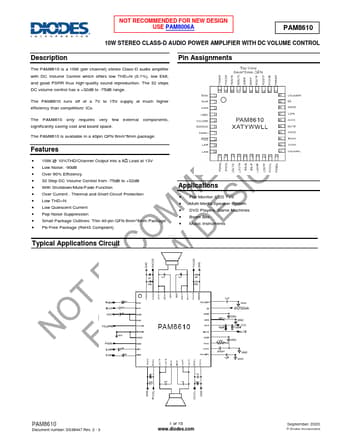

Preview of PAM8610 PDF
