TIC225 SILICON TRIACS

TIC225 SERIES SILICON TRIACS Copyright © 1997, Power Innovations Limited, UK JULY 1975 - REVISED MARCH 1997 q q q q q Sensitive Gate Triacs 8 A RMS, 70 A Peak Glass Passivated Wafer 400 V to 800 V Off-State Voltage Max IGT of 5 mA (Quadrant 1) MT1 MT2 G 1 2 3 TO-220 PACKAGE (TOP VIEW) Pin 2 is in electrical contact with the mounting base. MDC2ACA absolute maximum ratings over operating case temperature (unless otherwise noted) RATING TIC225D Repetitive peak off-state voltage (see Note 1) TIC.

TIC225 Datasheet (150.50 KB)

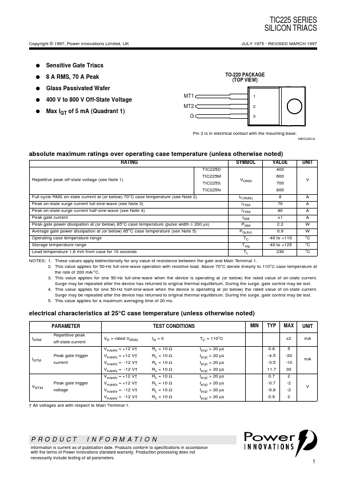

TIC225 Datasheet Preview — Preview of TIC225 PDF

Datasheet Details

Part number:

TIC225

Manufacturer:

Power Innovations Limited

File Size:

150.50 KB

Description:

Silicon triacs.
