TIC263S SILICON TRIACS

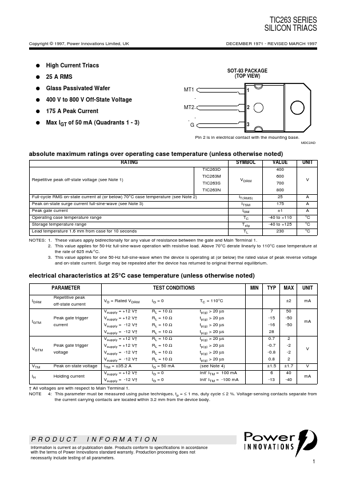

TIC263 SERIES SILICON TRIACS Copyright © 1997, Power Innovations Limited, UK DECEMBER 1971 - REVISED MARCH 1997 q q q q q q High Current Triacs 25 A RMS Glass Passivated Wafer 400 V to 800 V Off-State Voltage 175 A Peak Current Max IGT of 50 mA (Quadrants 1 - 3) MT2 2 SOT-93 PACKAGE (TOP VIEW) MT1 1 G 3 Pin 2 is in electrical contact with the mounting base. MDC2AD absolute maximum ratings over operating case temperature (unless otherwise noted) RATING TIC263D Repetitive peak off-state vol.
