INN2605K Off-Line CV/CC Flyback Switcher IC

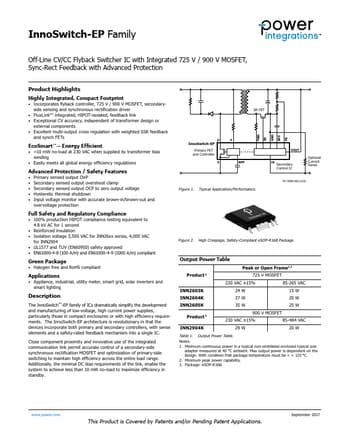

InnoSwitch-EP Family Off-Line CV/CC Flyback Switcher IC with Integrated 725 V / 900 V MOSFET, Sync-Rect Feedback with Advanced Protection Product Highlights Highly Integrated, Compact Footprint Incorporates flyback controller, 725 V / 900 V MOSFET, secondary- side sensing and synchronous rectification driver FluxLink™ integrated, HIPOT-isolated, feedback link Exceptional CV accuracy, independent of transformer design or external components Excellen.

INN2605K Features

* Primary sensed output OVP

* Secondary sensed output overshoot clamp

* Secondary sensed output OCP to zero output voltage

* Hysteretic thermal shutdown

* Input voltage monitor with accurate brown-in/brown-out and overvoltag

INN2605K Datasheet (3.09 MB)
