SID1132K Up to 8A Single Channel IGBT/MOSFET Gate Driver

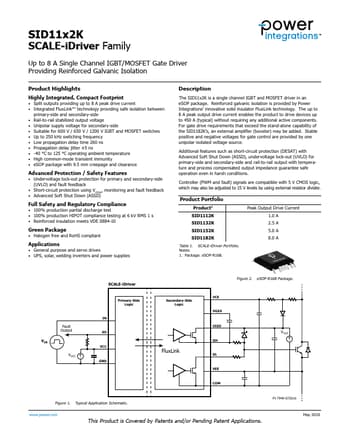

SID11x2K SCALE-iDriver Family Up to 8 A Single Channel IGBT/MOSFET Gate Driver Providing Reinforced Galvanic Isolation Product Highlights Highly Integrated, Compact Footprint Split outputs providing up to 8 A peak drive current Integrated FluxLink™ technology providing safe isolation between primary-side and secondary-side Rail-to-rail stabilized output voltage Unipolar supply voltage for secondary-side Suitable for 600 V / 650 V / 1200 V IGBT a.

SID1132K Features

* Undervoltage lock-out protection for primary and secondary-side (UVLO) and fault feedback

* Short-circuit protection using VCESAT monitoring and fault feedback

* Advanced Soft Shut Down (ASSD) Full Safety a
