SID1183K Datasheet - Power Integrations

SID1183K - Up to 8A Single Channel IGBT/MOSFET Gate Driver Providing Basic Galvanic Isolation

1700 V SCALE-iDriver Up to 8 A Single Channel IGBT/MOSFET Gate Driver Providing Basic Galvanic Isolation for 1700 V IGBT and MOSFET Product Highlights Highly Integrated, Compact Footprint Split outputs providing up to 8 A peak drive current Integrated FluxLinkâ„¢ technology providing galvanic isolation between primary-side and secondary-side Rail-to-rail stabilized output voltage Unipolar supply voltage for secondary-side Suitable for 1700 V IGBT

SID1183K Features

* Undervoltage lock-out protection for primary and secondary-side (UVLO) and fault feedback

* Short-circuit protection using VCE SAT monitoring and fault feedback

* Advanced Soft Shut Down (ASSD) F

SID1183K-PowerIntegrations.pdf

Preview of SID1183K PDF

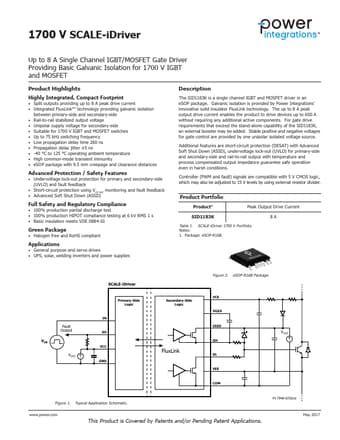

SID1183K Datasheet Preview Page 2 SID1183K Datasheet Preview Page 3

Datasheet Details

Part number:

SID1183K

Manufacturer:

Power Integrations

File Size:

1.30 MB

Description:

Up to 8a single channel igbt/mosfet gate driver providing basic galvanic isolation.
