SID1182K, SID1112K Datasheet - Power Integrations

SID1182K Up to 8A Single Channel IGBT/MOSFET Gate Driver

SID11x2K SCALE-iDriver Family Up to 8 A Single Channel IGBT/MOSFET Gate Driver Providing Reinforced Galvanic Isolation Product Highlights Highly Integrated, Compact Footprint Split outputs providing up to 8 A peak drive current Integrated FluxLinkâ„¢ technology providing safe isolation between primary-side and secondary-side Rail-to-rail stabilized output voltage Unipolar supply voltage for secondary-side Suitable for 600 V / 650 V / 1200 V IGBT a.

SID1182K Features

* Undervoltage lock-out protection for primary and secondary-side (UVLO) and fault feedback

* Short-circuit protection using VCESAT monitoring and fault feedback

* Advanced Soft Shut Down (ASSD) Full Safety a

SID1112K-PowerIntegrations.pdf

This datasheet PDF includes multiple part numbers: SID1182K, SID1112K. Please refer to the document for exact specifications by model.

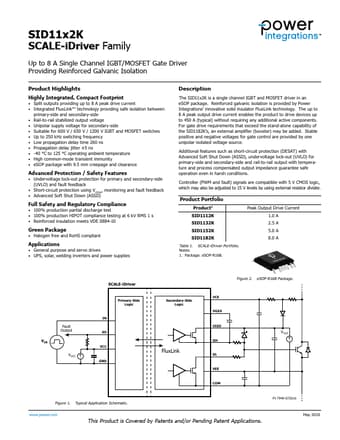

SID1182K Datasheet Preview Page 2 SID1182K Datasheet Preview Page 3

Datasheet Details

Part number:

SID1182K, SID1112K

Manufacturer:

Power Integrations

File Size:

1.92 MB

Description:

Up to 8a single channel igbt/mosfet gate driver.

Note:

This datasheet PDF includes multiple part numbers: SID1182K, SID1112K.
Please refer to the document for exact specifications by model.
