TNY264PN

Low Power Off-line Switcher

TNY264PN Features

* Reduce System Cost

* Fully integrated auto-restart for short circuit and open loop fault protection

* saves external component costs

* Built-in circuitry practically eliminates audible noise with ordinary dip-varnished transformer

* Programmable line undervoltage dete

TNY264PN General Description

TinySwitch™-II integrates a 700 V power MOSFET, oscillator, high voltage switched current source, current limit and thermal shutdown circuitry onto a monolithic device. The start-up and operating power are derived directly from the voltage on the DRAIN pin, eliminating the need for a bias winding an.

TNY264PN Datasheet (568.30 KB)

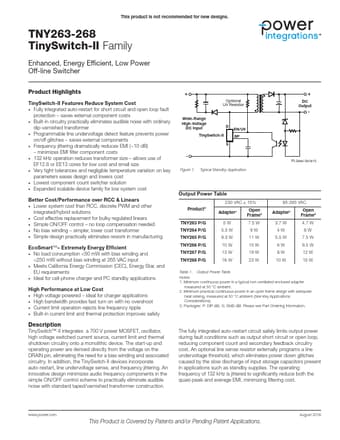

Preview of TNY264PN PDF

Datasheet Details

Part number:

TNY264PN

Manufacturer:

Power Integrations

File Size:

568.30 KB

Description:

Low power off-line switcher.
This product is not recommended for new designs. TNY263-268 TinySwitch-II Family Enhanced, Energy Efficient, Low Power Off-line Switcher Product High.
