CS1001-7R Datasheet - Power-One

CS1001-7R 100 Watt DC-DC Converters

S Series 100 Watt DC-DC Converters Wide input voltage ranges from 8385 V DC 1or 2 isolated outputs up to 48 V DC 4 kV AC I/O electric strengh test voltage LGA Rugged electrical and mechanical design Fully isolated outputs Operating ambient temperature range 4071 °C with convection cooling Selection chart Output 1 Uo nom Io nom [V DC] [A] 5.1 16 12 8 15 6.5 24 4.2 24 4 30 3.2 48 2 12 4 15 3.2 24 2 Output 1 Uo nom Io nom [V DC] [A] 5.1 16 12 8 15 6.5 24 4..

CS1001-7R Datasheet (147.40 KB)

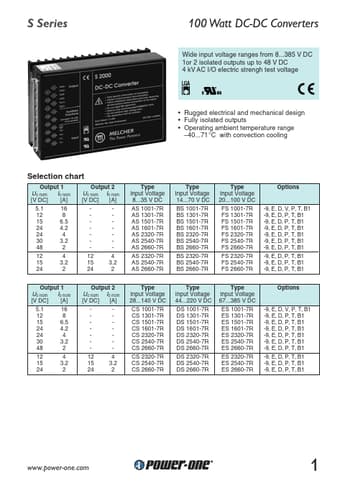

Preview of CS1001-7R PDF
CS1001-7R Datasheet Preview Page 2 CS1001-7R Datasheet Preview Page 3

Datasheet Details

Part number:

CS1001-7R

Manufacturer:

Power-One

File Size:

147.40 KB

Description:

100 watt dc-dc converters.
