DGP30E48S15

SINGLE OUTPUT

DGP30E48S15 Features

* Remote ON/OFF and TRIM

* Low OFF Current

* Overcurrent and Overtemperature Protection

* Efficiencies to 86%

* Transient Output Overvoltage Protection

* 1544V Isolation

* Five-Side Shielded Case

* Extended Range Input (2:1) BOTTOM VIEW

DGP30E48S15 General Description

The single output DGP30 Series is designed to accept an extended 2:1 input voltage range for use in industrial and telecom applications. The output of the converter is electrically isolated, thereby allowing the output to be configured as a positive or negative output voltage. For additional system .

DGP30E48S15 Datasheet (888.44 KB)

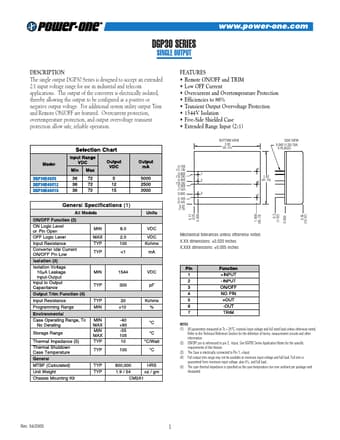

Preview of DGP30E48S15 PDF

Datasheet Details

Part number:

DGP30E48S15

Manufacturer:

Power-One

File Size:

888.44 KB

Description:

Single output.
