CM150TF-12H Datasheet - Powerex Power Semiconductors

IGBT Module

CM150TF-12H Features

* Low Drive Power

* Low VCE(sat)

* Discrete Super-Fast Recovery (70ns) Free-Wheel Diode

* High Frequency Operation (20-25kHz)

* Isolated Baseplate for Easy Heat Sinking Applications:

* AC Motor Control

* Motion/Servo Control

* UPS

CM150TF-12H General Description

Powerex IGBTMOD™ Modules are designed for use in switching applications. Each module consists of six IGBT Transistors in a three phase bridge configuration, with each transistor having a reverseconnected super-fast recovery free-wheel diode. All components and interconnects are isolated from the he.

CM150TF-12H Datasheet (63.20 KB)

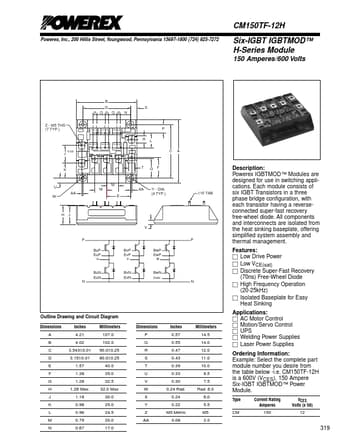

Preview of CM150TF-12H PDF

Datasheet Details

Part number:

CM150TF-12H

Manufacturer:

Powerex Power Semiconductors

File Size:

63.20 KB

Description:

Igbt module.
CM150TF-12H Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272 Six-IGBT IGBTMOD™ H-Series Module 150 Amperes/600 Vol.
