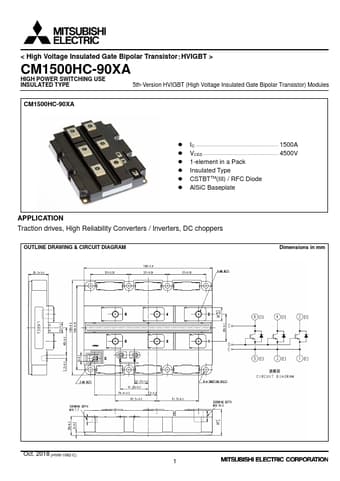

< High Voltage Insulated Gate Bipolar Transistor：HVIGBT > CM1500HC-90XA HIGH POWER SWITCHING USE INSULATED TYPE 5th-Version HVIGBT (High Voltage Insulated Gate Bipolar Transistor) Modules CM1500HC-90XA  I 1500A C ································································  V 4500V CES ··························································  1-element in a Pack  Insulated Type  CSTBTTM(III) / RFC Diode  AlSiC Baseplate APPLICATION Traction drives, High Reliability Converters / Inverters, DC choppers OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm Oct.
Published: |
