CM1501W - HIGH CURRENT SILICON BRIDGE RECTIFIERS

Datasheet Summary

Features

  • Metal Case for Maximum Heat Dissipation.
  • Surge Overload Ratings to 400 Amperes.
  • These bridges are on the U/L Recognized Products List for currents of 15 amperes. .452(11.5) MAX .591(15.0) MIN .042(1.1) .039(1.0).

📥 Download Datasheet

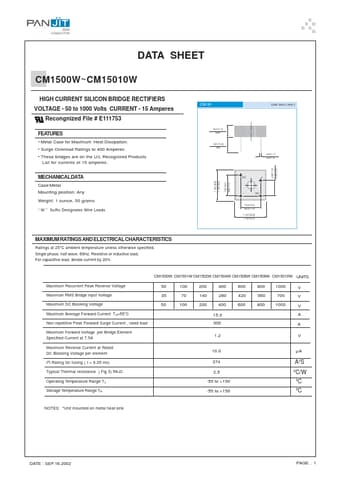

Datasheet preview – CM1501W

Datasheet Details

Part number CM1501W
Manufacturer Pan Jit International Inc.
File Size 40.51 KB
Description HIGH CURRENT SILICON BRIDGE RECTIFIERS
Datasheet download datasheet CM1501W Datasheet
Additional preview pages of the CM1501W datasheet.

📁 Similar Datasheet

  • CM1501 - HIGH CURRENT SILICON BRIDGE RECTIFIERS (PAN JIT)
  • CM1501-7R - 50 Watt DC-DC Converters (Power-One)
  • CM15010 - HIGH CURRENT SILICON BRIDGE RECTIFIERS (PAN JIT)
  • CM1500 - HIGH CURRENT SILICON BRIDGE RECTIFIERS (PAN JIT)
  • CM1500HC-90XA - HVIGBT Modules (Mitsubishi)
  • CM1500HG-66R - HVIGBT Modules (Mitsubishi)
  • CM1502 - HIGH CURRENT SILICON BRIDGE RECTIFIERS (PAN JIT)
  • CM1504 - HIGH CURRENT SILICON BRIDGE RECTIFIERS (PAN JIT)
  • CM1506 - HIGH CURRENT SILICON BRIDGE RECTIFIERS (PAN JIT)
  • CM1508 - HIGH CURRENT SILICON BRIDGE RECTIFIERS (PAN JIT)
Other Datasheets by Pan Jit International Inc.
  • CM15010W - HIGH CURRENT SILICON BRIDGE RECTIFIERS
  • CM1500W - HIGH CURRENT SILICON BRIDGE RECTIFIERS
  • CM1502W - HIGH CURRENT SILICON BRIDGE RECTIFIERS
  • CM1504W - HIGH CURRENT SILICON BRIDGE RECTIFIERS
  • CM1506W - HIGH CURRENT SILICON BRIDGE RECTIFIERS
  • CM1508W - HIGH CURRENT SILICON BRIDGE RECTIFIERS
  • CM1000 - HIGH CURRENT SILICON BRIDGE RECTIFIERS
  • CM1001 - HIGH CURRENT SILICON BRIDGE RECTIFIERS

Full PDF Text Transcription

Click to expand full text
DATA SHEET CM1500W~CM15010W HIGH CURRENT SILICON BRIDGE RECTIFIERS CM-W Unit: inch ( mm ) VOLTAGE - 50 to 1000 Volts CURRENT - 15 Amperes Recongnized File # E111753 FEATURES • Metal Case for Maximum Heat Dissipation. • Surge Overload Ratings to 400 Amperes. • These bridges are on the U/L Recognized Products List for currents of 15 amperes. .452(11.5) MAX .591(15.0) MIN .042(1.1) .039(1.0) MECHANICAL DATA 1.181(30.0) 1.102(28.0) AC + Case:Metal Mounting position: Any Weight: 1 ounce, 30 grams “ W ” Sufflx Designates Wlre Leads .732(18.6) .692(17.6) _ AC .732(18.6) .692(17.6) 1.181(30.0) 1.102(28.0) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60Hz, Resistive or inductive load.
