CM1501, CM1500, HIGH CURRENT SILICON BRIDGE RECTIFIERS

DATA SHEET CM1500~CM15010 HIGH CURRENT SILICON BRIDGE RECTIFIERS VOLTAGE - 50 to 1000 Volts CURRENT - 15 Amperes Recongnized File # E111753 .

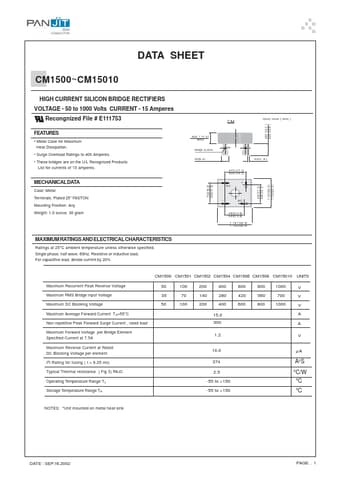

datasheet Preview Page 1 from Datasheet4u.com

CM1500-PANJIT.pdf

CM1501 Datasheet Preview — This datasheet PDF includes multiple part numbers: CM1501, CM1500. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CM1501, CM1500

Manufacturer:

PAN JIT

File Size:

32.53 KB

Description:

HIGH CURRENT SILICON BRIDGE RECTIFIERS

Note:

This datasheet PDF includes multiple part numbers: CM1501, CM1500.
Please refer to the document for exact specifications by model.

Features

* Metal Case for Maximum Heat Dissipation.
* Surge Overload Ratings to 400 Amperes.
* These bridges are on the U/L Recognized Products List for currents of 15 amperes. MECHANICALDATA Case: Metal Terminals: Plated 25” FASTON Mounting Position: Any Weight: 1.0 ounce, 30 gram MA
