CM15010, CM1500 Datasheet - PAN JIT

CM15010 HIGH CURRENT SILICON BRIDGE RECTIFIERS

CM15010 Features

* Metal Case for Maximum Heat Dissipation.

* Surge Overload Ratings to 400 Amperes.

* These bridges are on the U/L Recognized Products List for currents of 15 amperes. MECHANICALDATA Case: Metal Terminals: Plated 25” FASTON Mounting Position: Any Weight: 1.0 ounce, 30 gram MA

CM1500-PANJIT.pdf

This datasheet PDF includes multiple part numbers: CM15010, CM1500. Please refer to the document for exact specifications by model.

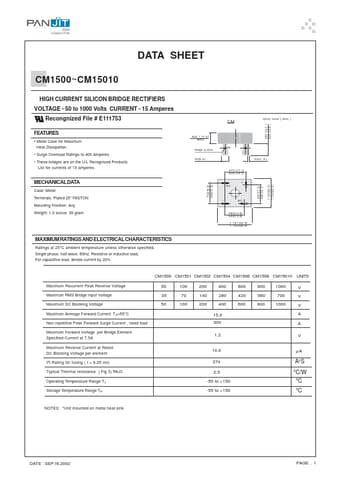

CM15010 Datasheet Preview Page 2

Datasheet Details

Part number:

CM15010, CM1500

Manufacturer:

PAN JIT

File Size:

32.53 KB

Description:

High current silicon bridge rectifiers.

Note:

This datasheet PDF includes multiple part numbers: CM15010, CM1500.
Please refer to the document for exact specifications by model.
