CM1500 - HIGH CURRENT SILICON BRIDGE RECTIFIERS

CM1500 Description

DATA SHEET CM1500~CM15010 HIGH CURRENT SILICON BRIDGE RECTIFIERS VOLTAGE - 50 to 1000 Volts CURRENT - 15 Amperes Recongnized File # E111753 .

CM1500 Features

* Metal Case for Maximum Heat Dissipation.
* Surge Overload Ratings to 400 Amperes.
* These bridges are on the U/L Recognized Products List for currents of 15 amperes. MECHANICALDATA Case: Metal Terminals: Plated 25” FASTON Mounting Position: Any Weight: 1.0 ounce, 30 gram MA

📥 Download Datasheet

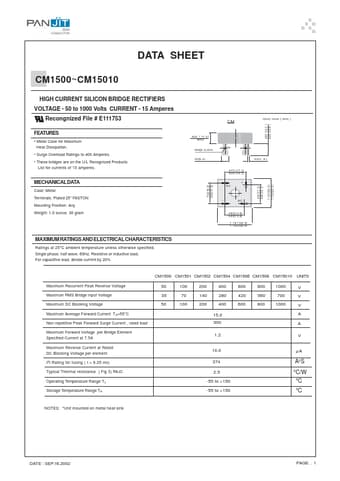

Preview of CM1500 PDF
datasheet Preview Page 2

Datasheet Details

Part number
CM1500
Manufacturer
PAN JIT
File Size
32.53 KB
Datasheet
CM1500-PANJIT.pdf
Description
HIGH CURRENT SILICON BRIDGE RECTIFIERS
