CM600HB-24A - IGBT

Datasheet Summary

Description

Powerex IGBTMOD™ Modules are designed for use in switching applications.

Each module consists of one IGBT Transistor in a single configuration with a reverse connected super-fast recovery free-wheel diode.

Features

£ Low Drive Power £ Low VCE(sat) £ Discrete Super-Fast Recovery Free-Wheel Diode £ Isolated Baseplate for Easy Heat Sinking.

Powerex

📥 Download Datasheet

Datasheet Details

Part number	CM600HB-24A
Manufacturer	Powerex
File Size	331.31 KB
Description	IGBT
Datasheet	CM600HB-24A Datasheet
Additional preview pages of the CM600HB-24A datasheet.

📁 Similar Datasheet

CM600HB-90H - IGBT Module (Powerex Power Semiconductors)
CM600HB-90H - IGBT Module (Mitsubishi Electric)
CM600HA-12H - IGBT Module (Mitsubishi Electric Semiconductor)
CM600HA-12H - IGBT Module (Powerex Power Semiconductors)
CM600HA-24A - IGBT (Mitsubishi)
CM600HA-24H - IGBT Module (Mitsubishi Electric Semiconductor)
CM600HA-24H - IGBT Module (Powerex Power Semiconductors)
CM600HA-28H - IGBT Module (Mitsubishi Electric Semiconductor)
CM600HA-28H - IGBT Module (Powerex Power Semiconductors)
CM600HA-5F - IGBT MODULES (Mitsubishi Electric Semiconductor)

Other Datasheets by Powerex

CM600HC-24NFM - IGBT

Full PDF Text Transcription

Click to expand full text

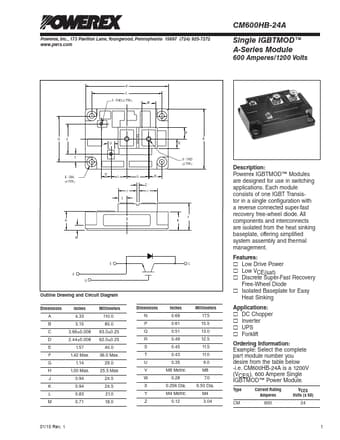

Powerex, Inc., 173 Pavilion Lane, Youngwood, Pennsylvania 15697 (724) 925-7272 www.pwrx.com CM600HB-24A Single IGBTMOD™ A-Series Module 600 Amperes/1200 Volts A C Y - THD (2 TYP.) M DE T X - DIA. (4 TYP.) H W E U G E C QL GN Z JJ S P R B V - THD (2 TYP.) F K E G E Outline Drawing and Circuit Diagram Dimensions A B C D E F G H J K L M Inches 4.33 3.15 3.66±0.008 2.44±0.008 1.57 1.42 Max. 1.14 1.00 Max. 0.94 0.94 0.83 0.71 Millimeters 110.0 80.0 93.0±0.25 62.0±0.25 40.0 36.0 Max. 29.0 25.5 Max 24.5 24.5 21.0 18.0 C Dimensions N P Q R S T U V W X Y Z Inches 0.69 0.61 0.51 0.49 0.45 0.43 0.35 M8 Metric 0.28 0.256 Dia. M4 Metric 0.12 Millimeters 17.5 15.5 13.0 12.5 11.5 11.0 9.0 M8 7.0 6.50 Dia. M4 3.
