CM600HA-28H - IGBT Module

Datasheet Summary

Description

Mitsubishi IGBT Modules are designed for use in switching applications.

Each module consists of one IGBT in a single configuration with a reverse-connected super-fast recovery free-wheel diode.

Features

  • ٗ Low Drive Power ٗ Low VCE(sat) ٗ Discrete Super-Fast Recovery Free-Wheel Diode ٗ High Frequency Operation ٗ Isolated Baseplate for Easy Heat Sinking.

📥 Download Datasheet

Datasheet preview – CM600HA-28H

Datasheet Details

Part number CM600HA-28H
Manufacturer Mitsubishi Electric Semiconductor
File Size 49.76 KB
Description IGBT Module
Datasheet download datasheet CM600HA-28H Datasheet
Additional preview pages of the CM600HA-28H datasheet.

📁 Similar Datasheet

Other Datasheets by Mitsubishi Electric Semiconductor

Full PDF Text Transcription

Click to expand full text

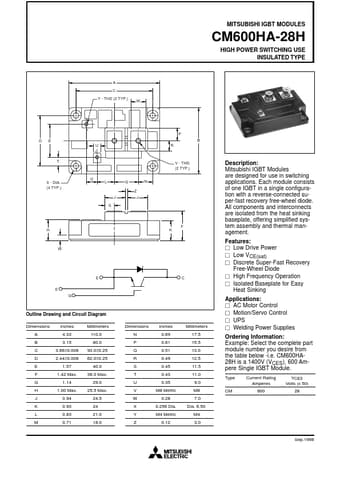

MITSUBISHI IGBT MODULES CM600HA-28H HIGH POWER SWITCHING USE INSULATED TYPE A C Y - THD (2 TYP.) M E E C P D E U G B R T V - THD (2 TYP.) Q L G Z J S J N X - DIA. (4 TYP.) H K F Description: Mitsubishi IGBT Modules are designed for use in switching applications. Each module consists of one IGBT in a single configuration with a reverse-connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management.
