CM600HA-24H - IGBT Module

Mitsubishi IGBT Modules are designed for use in switching applications. Each module consists of one IGBT in a single configuration with a reverse-connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system.

CM600HA-24H Features

* ٗ Low Drive Power ٗ Low VCE(sat) ٗ Discrete Super-Fast Recovery Free-Wheel Diode ٗ High Frequency Operation ٗ Isolated Baseplate for Easy Heat Sinking Applications: ٗ AC Motor Control ٗ Motion/Servo Control ٗ UPS ٗ Welding Power Supplies Ordering Information: Example: Select the complete part modul

CM600HA-24H_MitsubishiElectricSemiconductor.pdf

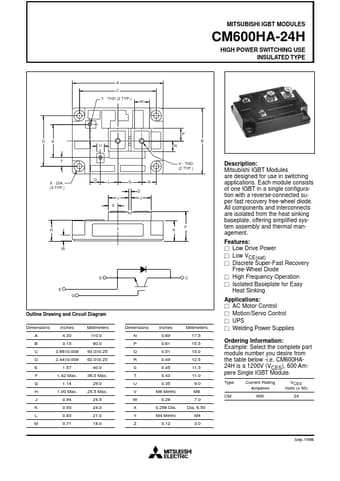

CM600HA-24H Datasheet Preview — Preview of CM600HA-24H PDF

Datasheet Details

Part number:

CM600HA-24H

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

45.28 KB

Description:

Igbt module.
