SM100KWE78CA

100-kilowatt TVS

SM100KWE78CA Datasheet (367.09 KB)

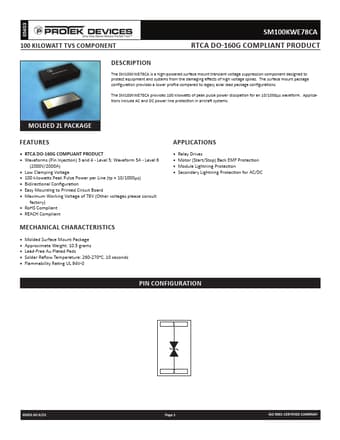

Preview of SM100KWE78CA PDF Datasheet

Datasheet Details

Part number:

SM100KWE78CA

Manufacturer:

ProTek Devices

File Size:

367.09 KB

Description:

100-kilowatt tvs

SM100KWE78CA Features

* RTCA DO-160G COMPLIANT PRODUCT

* Waveforms (Pin Injection) 3 and 4 - Level 5; Waveform 5A - Level 6 (2000V/2000A)

* Low Clamping Voltage

* 100 kilowatts Peak Pulse Power per Line (tp = 10/1000µs)

* Bidirectional Configuration

* Easy Mounting to Print

SM100KWE78CA General Description

The SM100KWE78CA is a high-powered surface mount transient voltage suppression component designed to protect equipment and systems from the damaging effects of high voltage spikes. The surface mount package configuration provides a lower profile compared to legacy axial lead package configurations. .
