PL23B3 Datasheet - Prolific

PL23B3 USB HID to UART Bridge Controller

7.1 SOP8 Pin Diagram 8 7.2 Pin Out Description8 7.3 GPIO Multi-Function Options 9 8. Functional Description 10 8.1 USB 1.1 FS Transceiver 10 8.2 LDO Regulator.
USB HID to UART Bridge Controller Product Data Sheet PL23B3 PL23B3 Single-chip USB HID to UART Bridge Controller USB Interface Fully Compliant with USB 2.0 specification (Full-Speed Mode). UHCI/OHCI (USB 1.1), EHCI (USB 2.0), xHCI (USB 3.1) Host Controller Compatible. USB Human Interface Device (HID) class: o No driver installation needed for Windows, Mac, Linux, and Android. o Provides HID-to-UART SDK libraries for application development. Integrated termination resi.

PL23B3 Datasheet (908.96 KB)

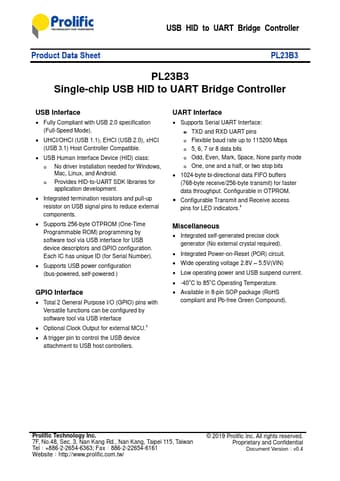

Preview of PL23B3 PDF
PL23B3 Datasheet Preview Page 2 PL23B3 Datasheet Preview Page 3

Datasheet Details

Part number:

PL23B3

Manufacturer:

Prolific

File Size:

908.96 KB

Description:

Usb hid to uart bridge controller.
