PAM02SD2312, PAM02SD2303 Datasheet - Protek Devices

PAM02SD2312 ultra LOW CAPACITANCE TVS

The PAM02SD23xx/C Series are ultra low capacitance transient voltage suppressor arrays, designed to protect automotive applications. These devices are available in either a unidirectional or bidirectional configuration and are rated at 350 Watts for an 8/20µs waveshape. The PAM02SD23xx/C Series meet.

PAM02SD2312 Features

* AEC-Q101 Qualified

* Compatible with IEC 61000-4-2 (ESD): Air ±15kV, Contact ±8kV Exceeds Level 4: Handles 10kV Contact & 25kV Air Discharge

* Compatible with IEC 61000-4-4 (EFT): 40A - 5/50ns

* Compatible with IEC 61000-4-5 (Surge)

* 350 Watts Peak Pulse

PAM02SD2303-ProtekDevices.pdf

This datasheet PDF includes multiple part numbers: PAM02SD2312, PAM02SD2303. Please refer to the document for exact specifications by model.

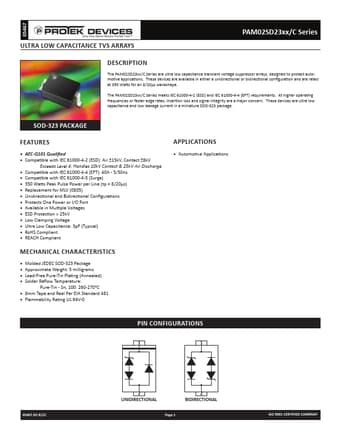

PAM02SD2312 Datasheet Preview Page 2 PAM02SD2312 Datasheet Preview Page 3

Datasheet Details

Part number:

PAM02SD2312, PAM02SD2303

Manufacturer:

Protek Devices

File Size:

563.49 KB

Description:

Ultra low capacitance tvs.

Note:

This datasheet PDF includes multiple part numbers: PAM02SD2312, PAM02SD2303.
Please refer to the document for exact specifications by model.
