PAM02SD2303 - ultra LOW CAPACITANCE TVS

PAM02SD2303 Description

05467 Only One Name Means ProTek’Tion™ ultra LOW CAPACITANCE TVS ARRAYs PAM02SD23xx/C Series .
The PAM02SD23xx/C Series are ultra low capacitance transient voltage suppressor arrays, designed to protect automotive applications.

PAM02SD2303 Features

* AEC-Q101 Qualified
* Compatible with IEC 61000-4-2 (ESD): Air ±15kV, Contact ±8kV Exceeds Level 4: Handles 10kV Contact & 25kV Air Discharge
* Compatible with IEC 61000-4-4 (EFT): 40A - 5/50ns
* Compatible with IEC 61000-4-5 (Surge)
* 350 Watts Peak Pulse

PAM02SD2303 Applications

* These devices are available in either a unidirectional or bidirectional configuration and are rated at 350 Watts for an 8/20µs waveshape. The PAM02SD23xx/C Series meets IEC 61000-4-2 (ESD) and IEC 61000-4-4 (EFT) requirements. At higher operating frequencies or faster edge rates, insertion loss and

📥 Download Datasheet

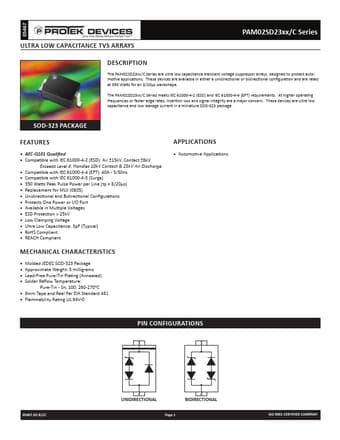

Preview of PAM02SD2303 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PAM02SD2303
Manufacturer
Protek Devices
File Size
563.49 KB
Datasheet
PAM02SD2303-ProtekDevices.pdf
Description
ultra LOW CAPACITANCE TVS
