PAM02SD2308

ultra LOW CAPACITANCE TVS

PAM02SD2308 Features

* AEC-Q101 Qualified

* Compatible with IEC 61000-4-2 (ESD): Air ±15kV, Contact ±8kV Exceeds Level 4: Handles 10kV Contact & 25kV Air Discharge

* Compatible with IEC 61000-4-4 (EFT): 40A - 5/50ns

* Compatible with IEC 61000-4-5 (Surge)

* 350 Watts Peak Pulse

PAM02SD2308 General Description

The PAM02SD23xx/C Series are ultra low capacitance transient voltage suppressor arrays, designed to protect automotive applications. These devices are available in either a unidirectional or bidirectional configuration and are rated at 350 Watts for an 8/20µs waveshape. The PAM02SD23xx/C Series meet.

PAM02SD2308 Datasheet (563.49 KB)

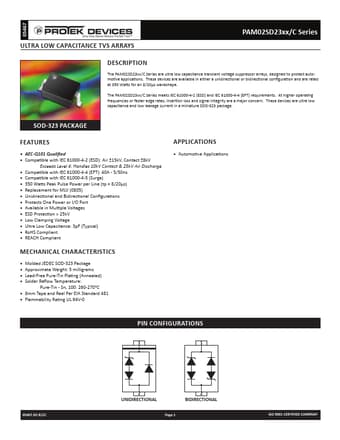

Preview of PAM02SD2308 PDF

Datasheet Details

Part number:

PAM02SD2308

Manufacturer:

Protek Devices

File Size:

563.49 KB

Description:

Ultra low capacitance tvs.
