PAM02SD2303C - ULTRA LOW CAPACITANCE TVS ARRAY

PAM02SD2303C Description

05467 Only One Name Means ProTek’Tion™ ULTRA LOW CAPACITANCE TVS ARRAY PAM02SD2303C .
The PAM02SD2303C is an ultra low capacitance transient voltage suppressor array, designed to protect automotive applications.

PAM02SD2303C Features

* AEC-Q101 Qualified
* Compatible with IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV Exceeds Level 4: Handles 10kV Contact & 25kV Air Discharge
* Compatible with IEC 61000-4-4 (EFT): 40A - 5/50ns
* Compatible with IEC 61000-4-5 (Surge)
* 350 Watts Pea

PAM02SD2303C Applications

* The device is available in a bidirectional configuration and is rated at 350 Watts for an 8/20µs waveshape. The PAM02SD2303C meets IEC 61000-4-2 (ESD) and IEC 61000-4-4 (EFT) requirements. At higher operating frequencies or faster edge rates, insertion loss and signal integrity are a major concern.

📥 Download Datasheet

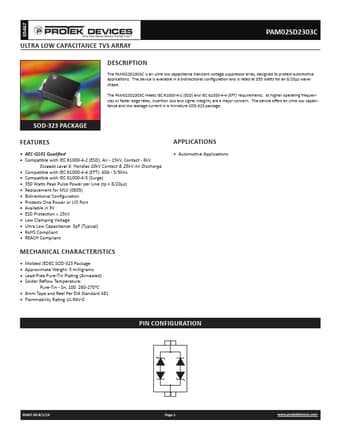

Preview of PAM02SD2303C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PAM02SD2303C
Manufacturer
Protek Devices
File Size
364.52 KB
Datasheet
PAM02SD2303C-ProtekDevices.pdf
Description
ULTRA LOW CAPACITANCE TVS ARRAY
