PAM02SD2312C, PAM02SD2308C - (PAM02SD2308C / PAM02SD2312C) ULTRA LOW CAPACITANCE TVS ARRAY

PAM02SD2312C Description

05346 Only One Name Means ProTek’Tion™ PAM02SD2308C - PAM02SD2312C ultra LOW CAPACITANCE TVS ARRAY .
The PAM02SD23xxC Series are ultra low capacitance transient voltage suppressor arrayd, designed to protect automotive applications.

PAM02SD2312C Features

* Compatible with IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV Exceeds Level 4: Handles 10kV Contact & 25kV Air Discharge
* Compatible with IEC 61000-4-4 (EFT): 40A - 5/50ns
* Compatible with IEC 61000-4-5 (Surge)
* 350 Watts Peak Pulse Power per Line (tp = 8

PAM02SD2312C Applications

* The devices are available in a bidirectional configuration and is rated at 350 Watts for an 8/20µs waveshape. The PAM02SD23xxC Series meets IEC 61000-4-2 (ESD) and IEC 61000-4-4 (EFT) requirements. At higher operating frequencies or faster edge rates, insertion loss and signal integrity are a major

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PAM02SD2312C, PAM02SD2308C. Please refer to the document for exact specifications by model.

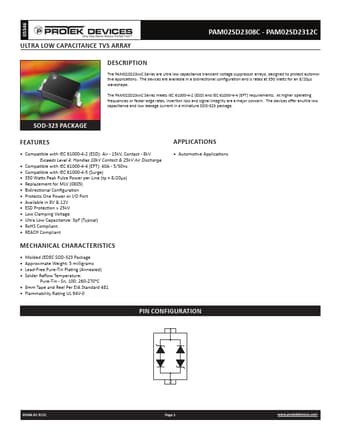

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PAM02SD2312C, PAM02SD2308C
Manufacturer
Protek Devices
File Size
581.08 KB
Datasheet
PAM02SD2308C_ProtekDevices.pdf
Description
(PAM02SD2308C / PAM02SD2312C) ULTRA LOW CAPACITANCE TVS ARRAY
Note
This datasheet PDF includes multiple part numbers: PAM02SD2312C, PAM02SD2308C.
Please refer to the document for exact specifications by model.
