USB0408C, USB0403 - (USB0403 - USB0424C) LOW CAPACITANCE TVS ARRAY

USB0408C Description

05205 USB0403 thru USB0424C LOW CAPACITANCE TVS ARRAY APPLICATIONS ✔ Ethernet - 10/100 Base T ✔ Cellular Phones ✔ Audio & Video Inputs ✔ FireWire, S.

USB0408C Features

* ✔ 500 Watts Peak Pulse Power per Line (tp=8/20µs) ✔ Unidirectional & Bidirectional Configurations ✔ Available in Multiple Voltage Types Ranging From 3V to 24V ✔ Protects One Line ✔ ESD Protection > 40 kilovolts ✔ Low Leakage ✔ Low Capacitance: 5pF per Line Pair ✔ RoHS Compliant in Lead-Free Versions

USB0408C Applications

* ✔ Ethernet - 10/100 Base T ✔ Cellular Phones ✔ Audio & Video Inputs ✔ FireWire, SCSI & USB Interfaces IEC COMPATIBILITY (EN61000-4) ✔ 61000-4-2 (ESD): Air - 15kV, Contact - 8kV ✔ 61000-4-4 (EFT): 40A - 5/50ns ✔ 61000-4-5 (Surge): 12A, 8/20µs - Level 1(Line-Gnd) & Level 2(Line-Line) SOT-143 FEATUR

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: USB0408C, USB0403. Please refer to the document for exact specifications by model.

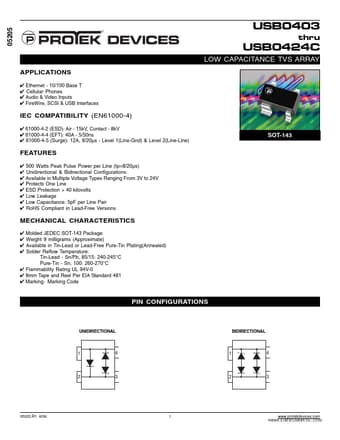

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
USB0408C, USB0403
Manufacturer
Protek Devices
File Size
98.75 KB
Datasheet
USB0403_ProtekDevices.pdf
Description
(USB0403 - USB0424C) LOW CAPACITANCE TVS ARRAY
Note
This datasheet PDF includes multiple part numbers: USB0408C, USB0403.
Please refer to the document for exact specifications by model.
