USB0405 Datasheet - Microsemi Corporation

USB0405 TVSarray Series

(300 watt) This 4 pin 1 line unidirectional ULTRA LOW CAPACITANCE array is designed for use in applications requiring board level protection from voltage transients caused by electrostatic discharge (ESD) as defined by IEC 1000-4-2, electrical fast transients (EFT) per IEC 1000-4-4 and effects of se.

USB0405 Features

* Protects 3.3 up through 24V Components Protects 1 line unidirectional Provides electrically isolated protection SOT-143 Packaging ULTRA LOW CAPACITANCE 5 pF MECHANICAL

* Molded SOT-143 Surface Mount Weight: .035

USB0405_MicrosemiCorporation.pdf

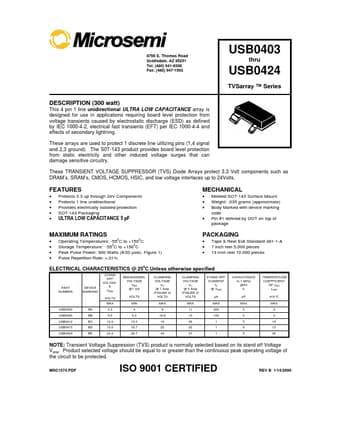

Preview of USB0405 PDF
USB0405 Datasheet Preview Page 2

Datasheet Details

Part number:

USB0405

Manufacturer:

Microsemi ↗ Corporation

File Size:

184.55 KB

Description:

Tvsarray series.
