USB0001DX - (USB000x) Multilayer Ceramic Transient Voltage Suppressors

Product Overview

Kyocera

📥 Download Datasheet

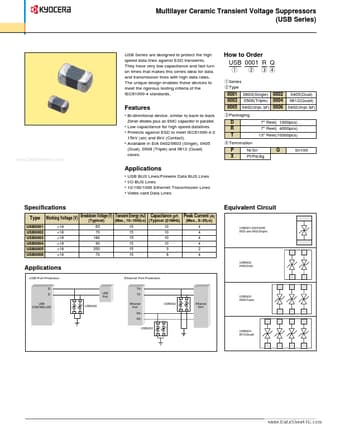

USB0001DX (USB000x) Multilayer Ceramic Transient Voltage Suppressors by Kyocera - Datasheet Preview — Datasheet preview – USB0001DX

Datasheet Details

Part number	USB0001DX
Manufacturer	Kyocera
File Size	64.75 KB
Description	(USB000x) Multilayer Ceramic Transient Voltage Suppressors
Datasheet	USB0001DX Datasheet
Note	This datasheet PDF includes multiple part numbers: USB0001DX, USB0005DP. Please refer to the document for exact specifications by model.
Additional preview pages of the USB0001DX datasheet.

Product details

Features

Bi-directional device, similar to back-to-back Zener diodes plus an EMC capacitor in parallel.
Low capacitance for high speed datalines.
Protects against ESD to meet IEC61000-4-2 15kV (air) and 8kV (Contact).
Available in EIA 0402/0603 (Single), 0405 (Dual), 0508 (Triple) and 0612 (Quad) cases. www. DataSheet4U. com ePackaging 7" Reel( 1000pcs) 7" Reel( 4000pcs) 13" Reel(10000pcs).
