USB0001RQ

(USB000x) Multilayer Ceramic Transient Voltage Suppressors

USB0001RQ Features

* Bi-directional device, similar to back-to-back Zener diodes plus an EMC capacitor in parallel.

* Low capacitance for high speed datalines.

* Protects against ESD to meet IEC61000-4-2 15kV (air) and 8kV (Contact).

* Available in EIA 0402/0603 (Single), 0405 (Dual), 0

USB0001RQ Datasheet (64.75 KB)

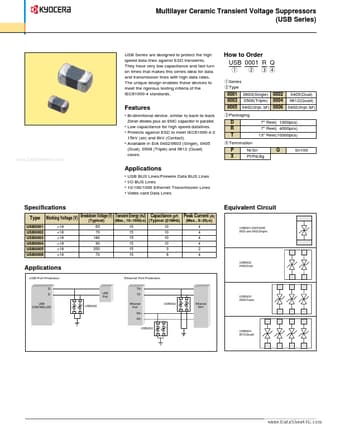

Preview of USB0001RQ PDF

Datasheet Details

Part number:

USB0001RQ

Manufacturer:

Kyocera

File Size:

64.75 KB

Description:

(usb000x) multilayer ceramic transient voltage suppressors.
Multilayer Ceramic Transient Voltage Suppressors (USB Series) USB Series are designed to protect the high speed data lines against ESD transients. Th.
